TV SERIES-TT 2-1058

See comparative

Code: 2-1058

Resine castors, especially indicated to stand high temperatures up to 300º and high-loads up to 125 Kg.

It is used in: furnaces and light machinery.

Mainly used in the industrial sector, aeronautic sector, automobile factories and food industry.

Suitable for mechanical engineering projects by draftsmen and project executors.

TT: Resine castor. Indicated for industrial industry.

Can withstand up to 250ºC in 30 minutes intervals.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

Wheel

Resin wheel up to 280ºC when not in continuous use

Temperature range: -30º ÷ +280º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

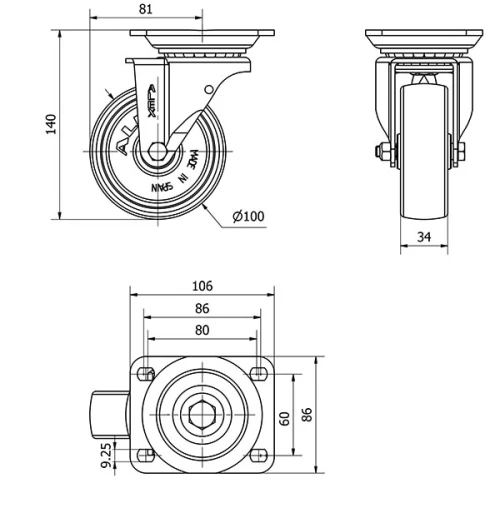

Technical Data 2-1058

EAN:

8422202210582

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Phenolic Resin Wheel

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

106x86

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

140

Load:

125

Unit Weight of the wheel (kg):

1,137

Volume (cm³):

1613
