61 SERIES-FT 4-0103

Code: 4-0103

Reinforced nylon castors, especially indicated to support high-loads up to 650 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, waste extraction containers, tranport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabeinetmaker's, metalworks, agricultural farms, elevating tables, meat industry and containers.

Mainly used in the aeronautic sector, railway, automobile industries, food industry, repair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

FT: castors especially indicated for food and chemical industry applications. Does not leave marks on floor. Reinforced. High resistance to impacts and collisions.

Components

Brackets

Castor built for heavy-duty work.Made of pressed steel up to 4 mm.Finish: Zinc plated.The robust construction of this castor allows for first-rate efficiency, long duration and excellent performance.Manufactured to European standard EN 12532.

Wheel

Reinforced nylon (Polyamid 6) wheel, white colour

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

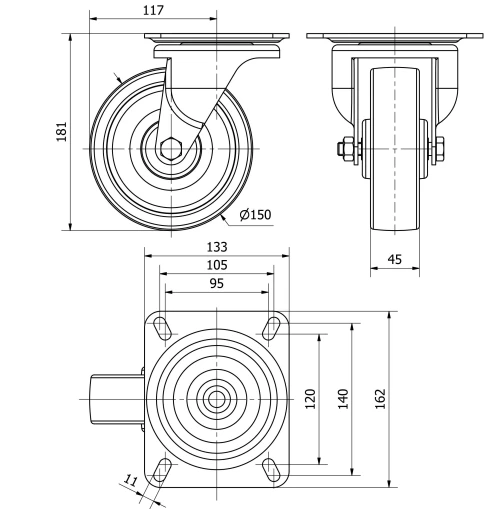

Technical Data 4-0103

EAN:

8422202401034

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Nylon(Polyamide 6)

Bearing:

Plain

Diameter (mm):

150

Width of tyre (mm):

Plate dimensions (mm):

162x133

Distance between holes (mm):

140x105/120x95

Plate hole diameter (mm):

Offset (mm):

117

Overall height (mm):

181

Load:

650

Unit Weight of the wheel (kg):

2,252

Volume (cm³):

4766

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

4-0116
