Which castors do you need?
61 SERIES-HG 4-1297
EAN 8422202412979

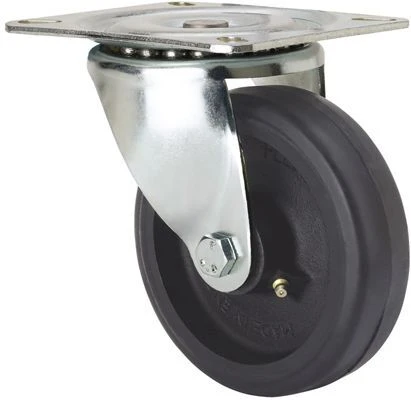

Castors with steel centre and black rubber tyre, especially indicated to support high-loads up to 400 Kg.
It is used in: logistics transport tools, repair shops, internal logistics and elevating platforms.
Mainly used in the industrial sector.
HG: castor suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general. Noiseless.

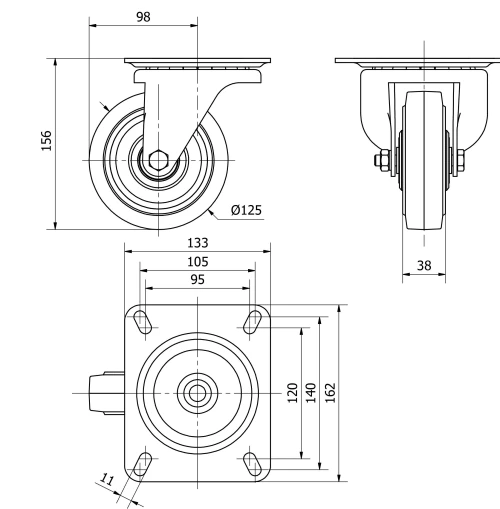

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 38 |
Plate dimensions (mm) | 162x133 |
Distance between holes (mm) | 140x105/120x95 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 98 |
Overall height (mm) | 156 |
Load | 225 |
Unit Weight of the wheel (kg) | 2.937 |
Volume (cm3) | 3714 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Castor built for heavy-duty work.Made of pressed steel up to 4 mm.Finish: Zinc plated.The robust construction of this castor allows for first-rate efficiency, long duration and excellent performance.Manufactured to European standard EN 12532.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
