61 SERIES-HG 4-1296

Code: 4-1296

Castors with steel centre and black rubber tyre, especially indicated to support high-loads up to 400 Kg.

It is used in: logistics transport tools, repair shops, internal logistics and elevating platforms.

Mainly used in the industrial sector.

HG: castor suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general. Noiseless.

Components

Brackets

Castor built for heavy-duty work.Made of pressed steel up to 4 mm.Finish: Zinc plated.The robust construction of this castor allows for first-rate efficiency, long duration and excellent performance.Manufactured to European standard EN 12532.

Wheel

Rubber tyre on cast iron centre with grease nipple

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

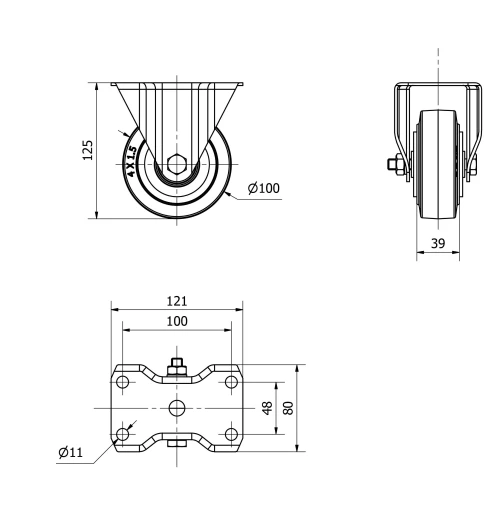

Technical Data 4-1296

EAN:

8422202412962

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

121x80

Distance between holes (mm):

100x48

Plate hole diameter (mm):

Overall height (mm):

125

Load:

180

Unit Weight of the wheel (kg):

1,352

Volume (cm³):

1210
