61 SERIES-HU 4-0272

Code: 4-0272

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 680 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, waste extraction containers, tranport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry and containers.

Mainly used in the aeronautic sector, railway, automobile industries, food industry, repair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

HU: high absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

Components

Brackets

Castor built for heavy-duty work. Made of pressed steel up to 4 mm. Finish: Zinc plated. The robust construction of this castor allows for first-rate efficiency, long duration and excellent performance. Manufactured to European standard EN 12532.

Wheel

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

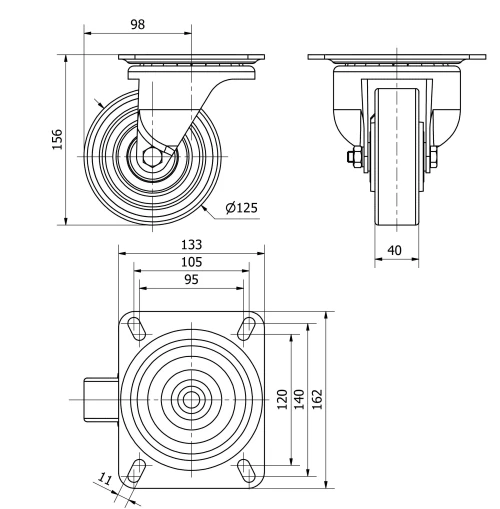

Technical Data 4-0272

EAN:

8422202402727

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

162x133

Distance between holes (mm):

140x105/120x95

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

156

Load:

400

Unit Weight of the wheel (kg):

3,14

Volume (cm³):

3714
