Which castors do you need?
61 SERIES-HU 4-0271
EAN 8422202402710

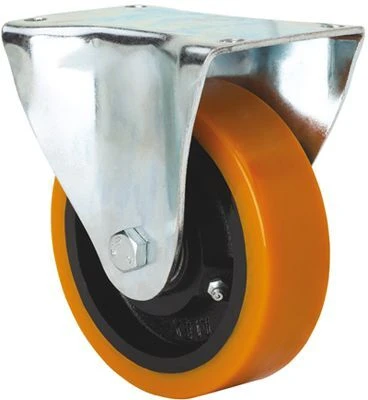

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 680 Kg.
It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, waste extraction containers, tranport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry and containers.
Mainly used in the aeronautic sector, railway, automobile industries, food industry, repair shops and industrial activities.
Suitable for mechanical engineering projects by draftsmen and project executors.
HU: high absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

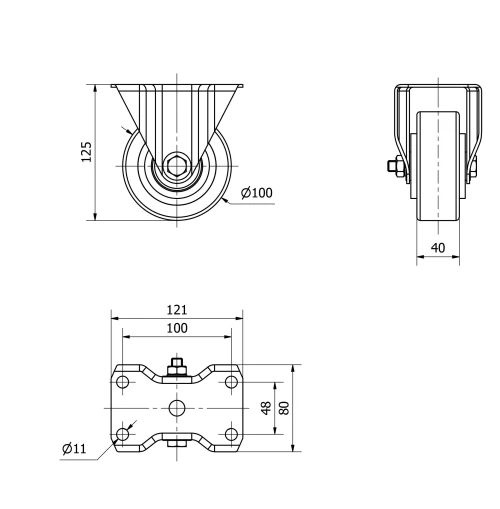

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 100 |
Width of tyre (mm) | 40 |
Plate dimensions (mm) | 121x80 |
Distance between holes (mm) | 100x48 |
Plate hole diameter (mm) | 10 |
Overall height (mm) | 125 |
Load | 340 |
Unit Weight of the wheel (kg) | 1.351 |
Volume (cm3) | 1210 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Castor built for heavy-duty work. Made of pressed steel up to 4 mm. Finish: Zinc plated. The robust construction of this castor allows for first-rate efficiency, long duration and excellent performance. Manufactured to European standard EN 12532.
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
