61 SERIES-PO 4-0269

Code: 4-0269

Castors with white nylon centre and red injected polyurethane tyre with a hardness of 90-95º Shore A. Especially indicated to support high-loads up to 450 Kg.

It is used in: logistic transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, transport tools, waste extraction containers, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry and containers.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

PO: elastic functioning. Noiseless. High floor protection. Long useful life. Resistant to oils, grease and shavings. Clean and undeformable.

Components

Brackets

Castor built for heavy-duty work. Made of pressed steel up to 4 mm. Finish: Zinc plated. The robust construction of this castor allows for first-rate efficiency, long duration and excellent performance. Manufactured to European standard EN 12532.

Wheel

Red polyurethane tyre on white polyamide centre.95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

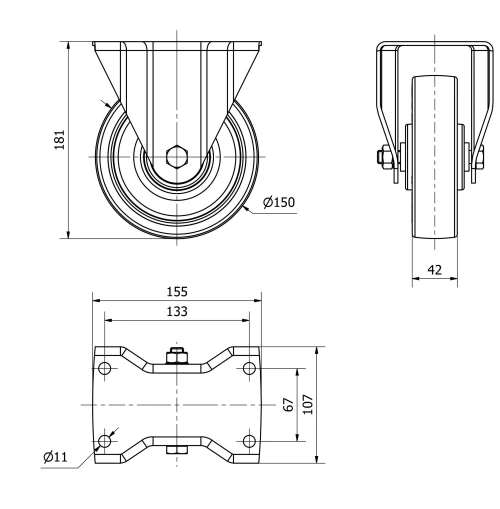

Technical Data 4-0269

EAN:

8422202402697

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

90-95º SHORE A

Bearing:

Ball

Diameter (mm):

150

Width of tyre (mm):

Plate dimensions (mm):

155x107

Distance between holes (mm):

133x67

Plate hole diameter (mm):

Overall height (mm):

181

Load:

450

Unit Weight of the wheel (kg):

1,898

Volume (cm³):

3002
