61 SERIES-TA 4-0277

Code: 4-0277

Steel castors, especially indicated to support high-loads up to 680 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tranport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry and containers.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

Components

Brackets

Castor built for heavy-duty work.Made of pressed steel up to 4 mm.Finish: Zinc plated.The robust construction of this castor allows for first-rate efficiency, long duration and excellent performance.Manufactured to European standard EN 12532.

Wheel

Cast iron wheel

Temperature range: -40º ÷ +300º

Rolling Resistence Excelent

Noise during the march Sufficient

Floor Protection Sufficient

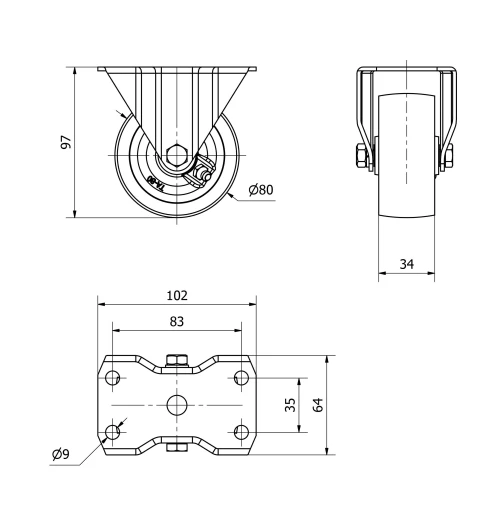

Technical Data 4-0277

EAN:

8422202402772

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Cast Iron

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

102x64

Distance between holes (mm):

83x35

Plate hole diameter (mm):

Overall height (mm):

Load:

220

Unit Weight of the wheel (kg):

0,999

Volume (cm³):

633

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

4-0276
