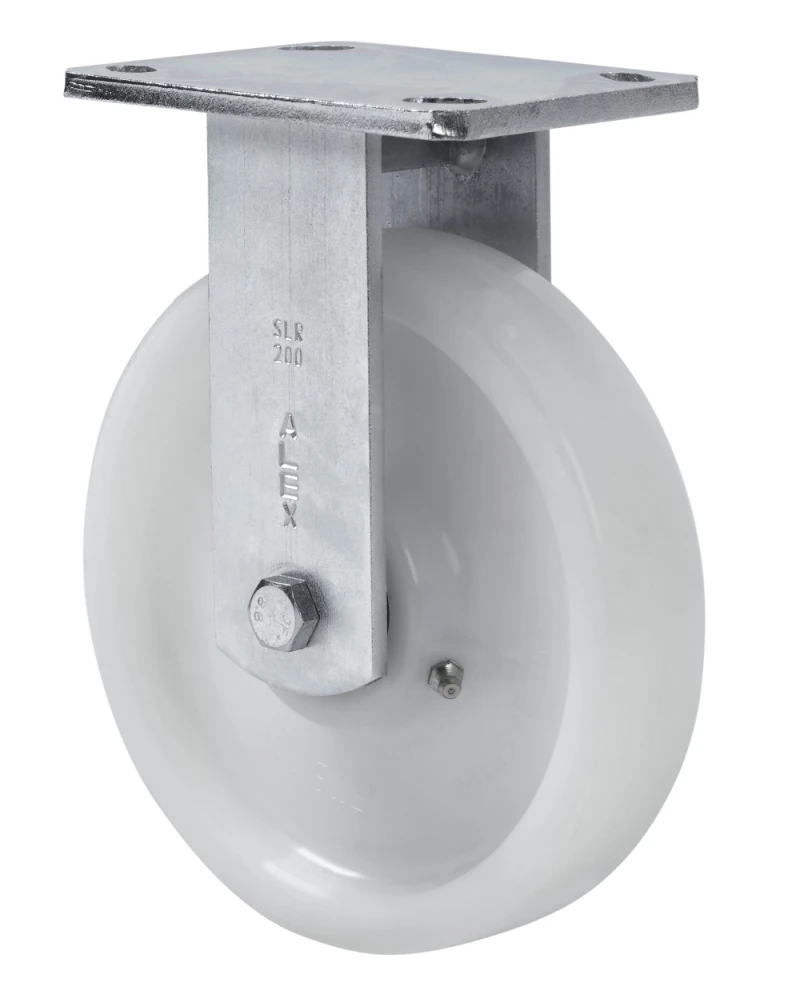

SLR SERIES-FT 2-3673

Code: 2-3673

Reinforced nylon castors, especially indicated to support high-loads up to 1.000 Kg.

It is used in: logistics transport tools, outdoor areas, clean rooms, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector, mobile cranes, sport centres, carbody factories and petrochemical industry.

Mainly used in the aeronautic sector, railway and automobile factories.

FT: especially indicated for food and chemical industry applications. Does not leave marks on floor. Reinforced. Canning factories.

Components

Brackets

Made of forged steel up to 8 mm. Double swivel head. The upper one with large ball bearings and the lower one with precision bearings to facilitate rotation, radial and axial efforts. Model especially manufactured for use in large carts with mechanical drive, factory maintenance, metallurgical industries. White zinc finish Manufactured to European Standards EN 12532

Wheel

Reinforced nylon (Polyamid 6) wheel, white colour

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

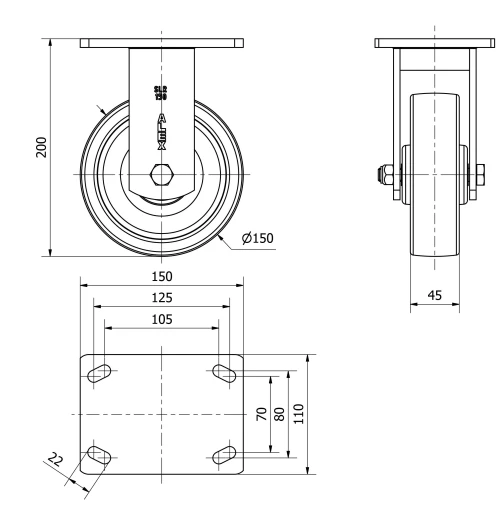

Technical Data 2-3673

EAN:

8422202236735

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Nylon(Polyamide 6)

Bearing:

Plain

Diameter (mm):

150

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

125x70/105x80

Plate hole diameter (mm):

Overall height (mm):

200

Load:

900

Unit Weight of the wheel (kg):

2,695

Volume (cm³):

3300
