SLR SERIES-HU 2-3663
EAN 8422202236636

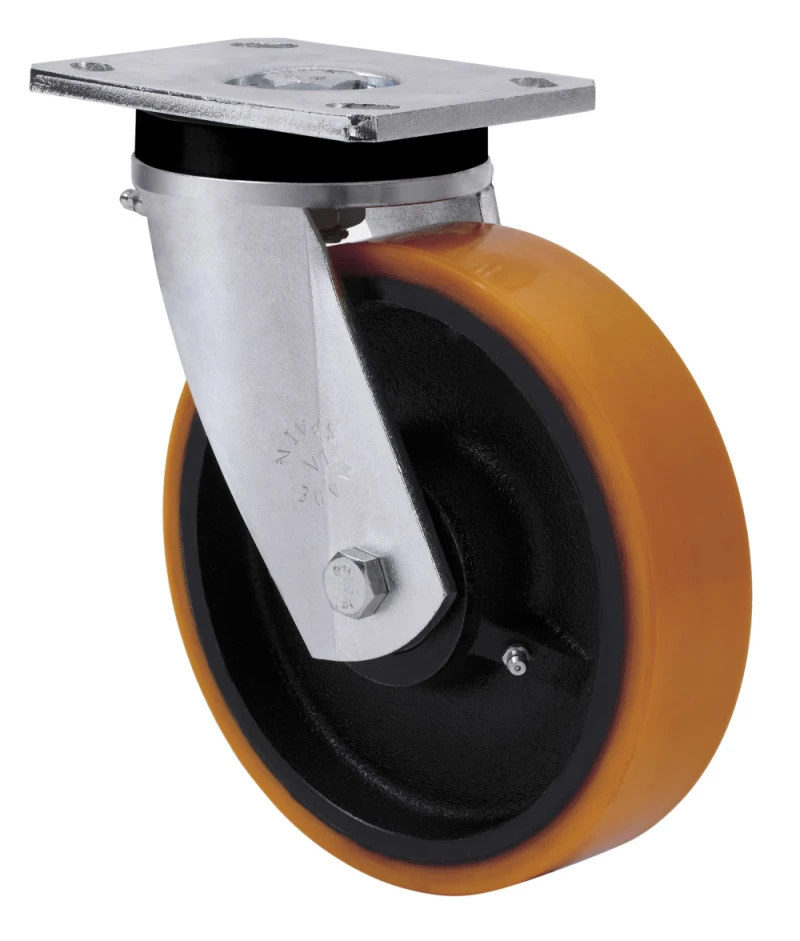

Castors with steel centre and cast polyurethane tyre with a hardness of 95º, especially indicated to support high-loads up to 1.000 Kg.
It is used in: logistics transport tools, outdoor areas, carbody factories, internal logistics, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables, carts, equipments and industrial areas.
Suitable for mechanical engineering projects by draftsmen and project executors.
HU: high absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

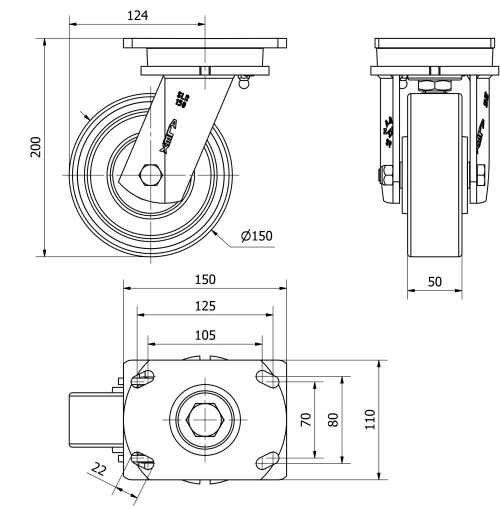

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 150 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 125x70/105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 124 |
Overall height (mm) | 200 |
Load | 800 |
Unit Weight of the wheel (kg) | 5.74 |
Volume (cm3) | 4378 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of forged steel up to 8 mm. Double swivel head. The upper one with large ball bearings and the lower one with precision bearings to facilitate rotation, radial and axial efforts. Model especially manufactured for use in large carts with mechanical drive, factory maintenance, metallurgical industries. White zinc finish Manufactured to European Standards EN 12532
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
