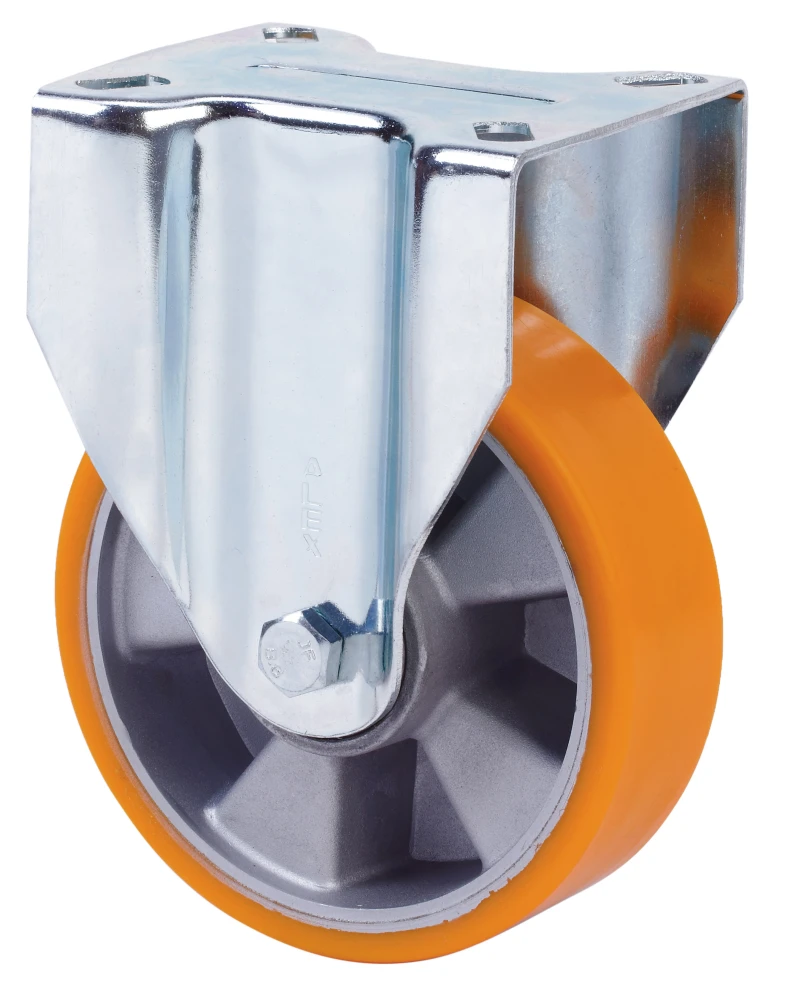

TV SERIES-AUB 2-3610

Code: 2-3610

Castors with alumninium centre and polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 800 kg.

It is used in: tool trolleys, tubular carts, internal logistics, transport tools, elevating platforms, food industry, repair shops, logistics for military missions material, tool transport, packaging, conveyor belts, light machinery, mobile cranes, elevating tables, cabinetmaker's, metalworks, meat industry, containers and sport centres.

Mainly used in the aeronautic sector, railway and automobile factories.

Suitable for mechanical engineering projects by draftsmen and project executors.

AUB: Polyurethane for heavy duty works. Absorption to impacts.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

Wheel

Polyurethane tyre on aluminium die-cast centre. 95º shore A

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

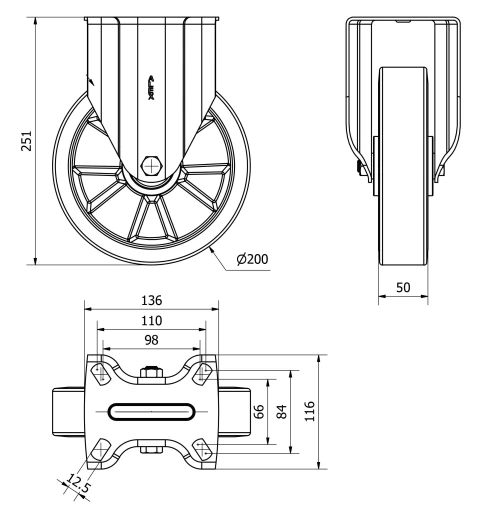

Technical Data 2-3610

EAN:

8422202236100

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

136x116

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

251

Load:

800

Unit Weight of the wheel (kg):

2,79

Volume (cm³):

5823
