TV SERIES-AUB 2-3611
EAN 8422202236117

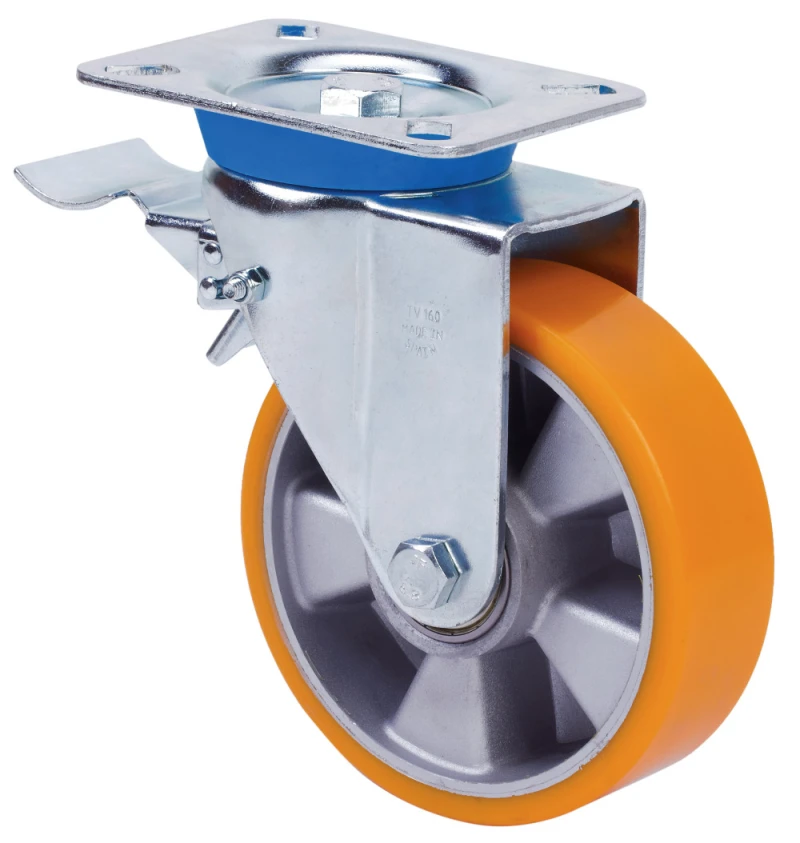

Castors with alumninium centre and polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 800 kg.
It is used in: tool trolleys, tubular carts, internal logistics, transport tools, elevating platforms, food industry, repair shops, logistics for military missions material, tool transport, packaging, conveyor belts, light machinery, mobile cranes, elevating tables, cabinetmaker's, metalworks, meat industry, containers and sport centres.
Mainly used in the aeronautic sector, railway and automobile factories.
Suitable for mechanical engineering projects by draftsmen and project executors.
AUB: Polyurethane for heavy duty works. Absorption to impacts.

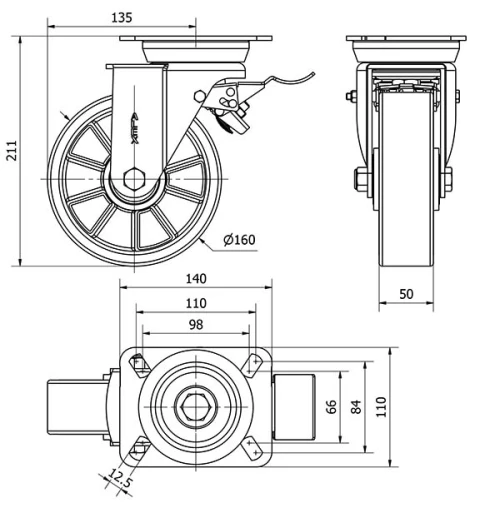

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 160 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 139x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 135 |
Overall height (mm) | 211 |
Load | 600 |
Unit Weight of the wheel (kg) | 3.38 |
Volume (cm3) | 5733 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
