TV SERIES-DE 2-2194

Code: 2-2194

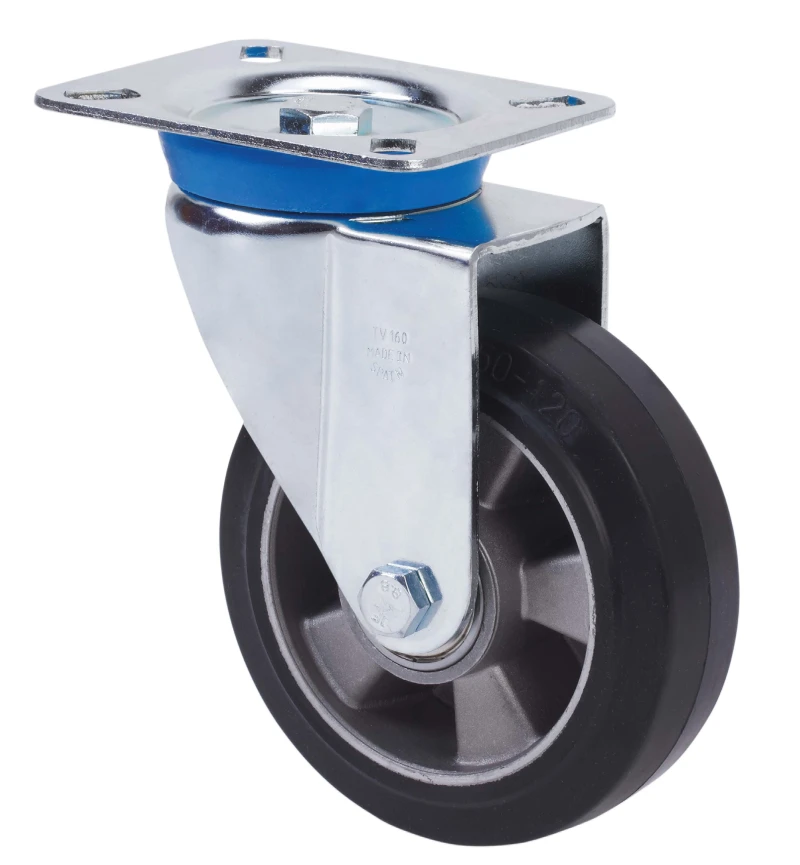

Castors with aluminium centre and elastic black rubber tyre with a hardness of 70º Shore A. Especially indicated to support high-loads up to 450 Kg.

It is used in: logistics transport tools, repair shops, tool trolleys, internal logistics, tubular carts, mobile platforms, transport tools, elevating platforms, food industry, logistics for military missions material, heavy machinery for the construction sector, elevating driven carts, poultry farms, containers, roll containers and transport cages.

Suitable for mechanical engineering projects by draftsmen and project executors.

DE: ideal in the manual and noiseless displacement of medium-loads. Absorption to impacts and vibrations. High protection of floors and equipment. Ideal in uneven surfaces.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

Wheel

Elastic rubber tyre on Aluminium centre. 70º Shore A

Temperature range: -20º ÷ +70º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

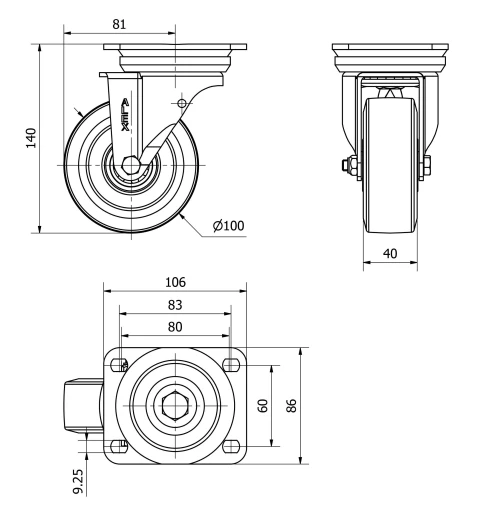

Technical Data 2-2194

EAN:

8422202221946

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Hardness of tread:

70º SHORE A

Bearing:

Ball

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

106x86

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

140

Load:

200

Unit Weight of the wheel (kg):

1,24

Volume (cm³):

1613
