TV SERIES-HG 2-2048
EAN 8422202220482

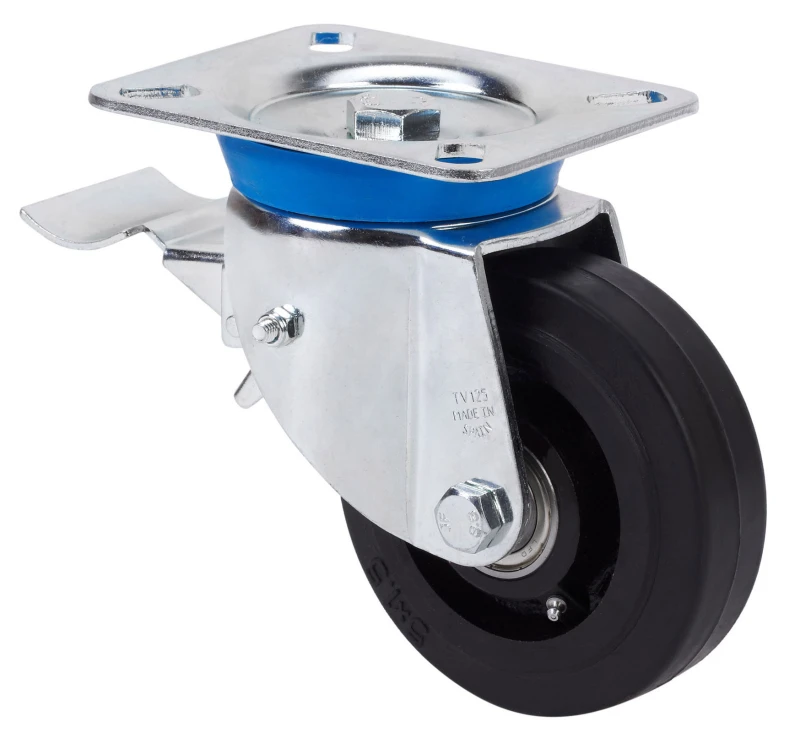

Castors with steel centre and black rubber tyre, especially indicated to support high-loads up to 600 Kg.
It is used in: logistics transport tools, repair shops, internal logistics, elevating platforms, sweeping machines, polishing machines and driven carts.
Mainly used in the industrial sector, aeronautic sector, railway and automobile factories.
Suitable for mechanical engineering projects by draftsmen and project executors
HG: castor suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general. Noiseless. Floor protection.

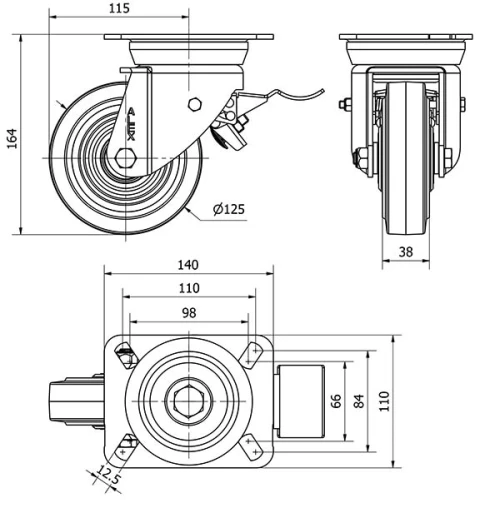

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 38 |
Plate dimensions (mm) | 139x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 115 |
Overall height (mm) | 164 |
Load | 250 |
Unit Weight of the wheel (kg) | 3.63 |
Volume (cm3) | 4095 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
