TV SERIES-HG 2-2054

Code: 2-2054

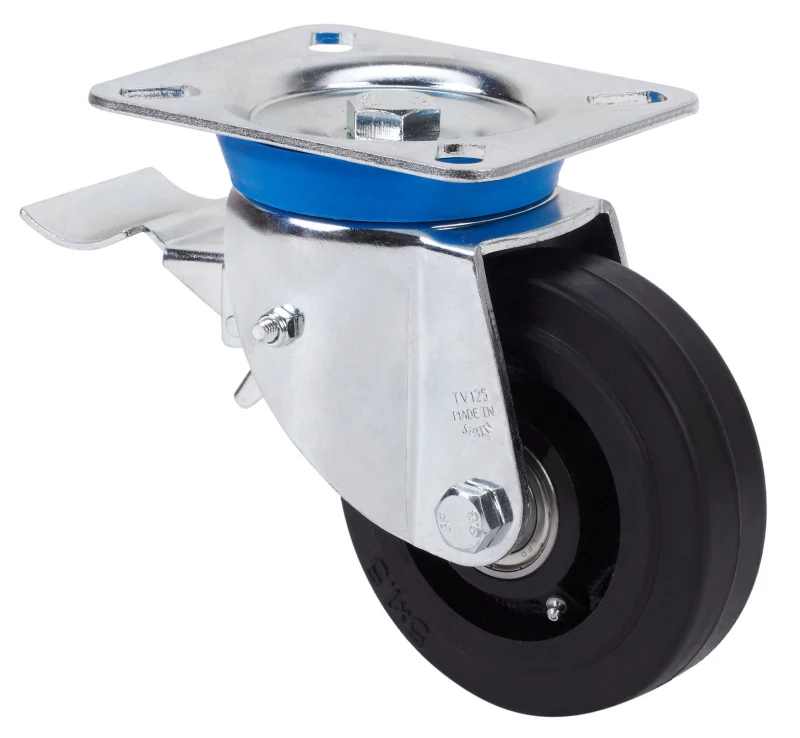

Castors with steel centre and black rubber tyre, especially indicated to support high-loads up to 600 Kg.

It is used in: logistics transport tools, repair shops, internal logistics, elevating platforms, sweeping machines, polishing machines and driven carts.

Mainly used in the industrial sector, aeronautic sector, railway and automobile factories.

Suitable for mechanical engineering projects by draftsmen and project executors

HG: castor suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general. Noiseless. Floor protection.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

Wheel

Rubber tyre on cast iron centre with grease nipple

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

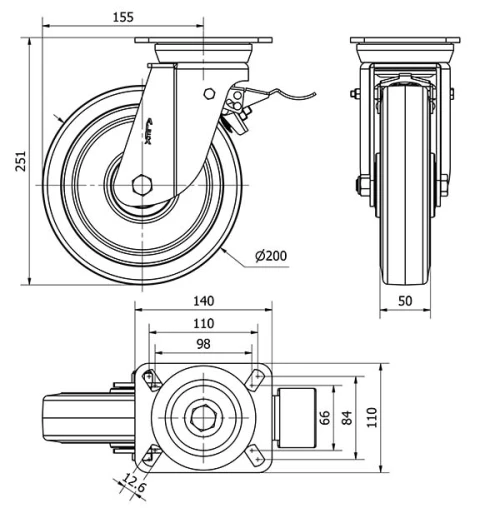

Technical Data 2-2054

EAN:

8422202220543

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

139x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

155

Overall height (mm):

251

Load:

600

Unit Weight of the wheel (kg):

6,6

Volume (cm³):

7372
