TV SERIES-HUAB 2-3530
EAN 8422202235301
Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, with a ball-shaped tread tyre, especially indicated to support high-loads up to 800 Kg.
It is used in: logistics transport tools, repair shops, internal logistics, food industry, logistics for military missions material, heavy machinery and containers.
Mainly used in the industrial sector, aeronautic sector, and automobile factories.
Suitable for mechanical engineering projects by draftsmen and project executors.
HUAB: easy to use. High absorption to impacts. Unfavourable flooring surfaces conditions. Rough flooring surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

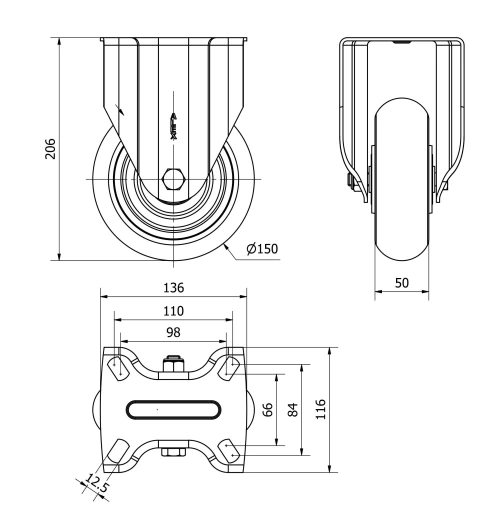

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 150 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 136x116 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Overall height (mm) | 206 |
Load | 600 |
Unit Weight of the wheel (kg) | 3.9 |
Volume (cm3) | 3271 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.
-
Rolling Resistence Excelent
-
Noise during the march Good
-
Floor Protection Good
