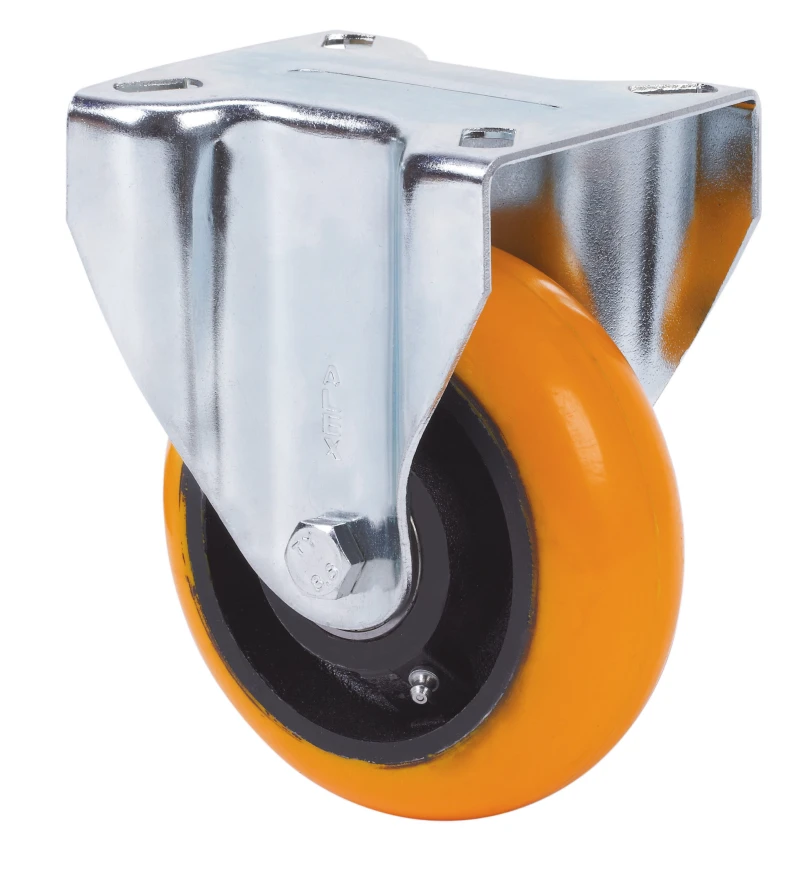

TV SERIES-HUAB 2-3531

Code: 2-3531

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, with a ball-shaped tread tyre, especially indicated to support high-loads up to 800 Kg.

It is used in: logistics transport tools, repair shops, internal logistics, food industry, logistics for military missions material, heavy machinery and containers.

Mainly used in the industrial sector, aeronautic sector, and automobile factories.

Suitable for mechanical engineering projects by draftsmen and project executors.

HUAB: easy to use. High absorption to impacts. Unfavourable flooring surfaces conditions. Rough flooring surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

Wheel

Polyurethane tyre on cast iron centre

Temperature range: -20º ÷ +60º

Rolling Resistence Excelent

Noise during the march Good

Floor Protection Good

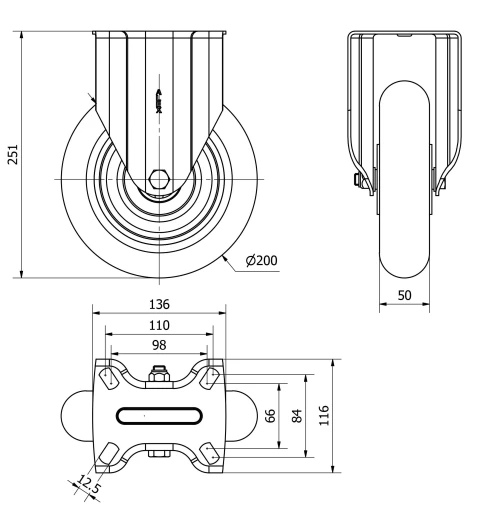

Technical Data 2-3531

EAN:

8422202235318

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

136x116

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

251

Load:

800

Unit Weight of the wheel (kg):

5,24

Volume (cm³):

5823

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-3529

2-3533
