Castors with white nylon centre and red polyurethane tyre with a hardness of 90º-95º Shore A. Especially indicated to support high-loads up to 600 Kg.
It is used in: logistics transport tools, outdoor areas, tool trolleys, internal logistics, tubular carts, pneumatic factories, mobile platforms, transport tools, elevating platforms, food industry, transport carts, repair shops, logistics for military missions material, tool transport, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts and heavy machinery.
Mainly used in the aeronautic sector, railway and automobile factorie and food industry.
Suitable for mechanical engineering projects by draftsmen and project executors.
PO: noiseless. High floor protection. Long useful life. Resistant to oils, grease and shavings.

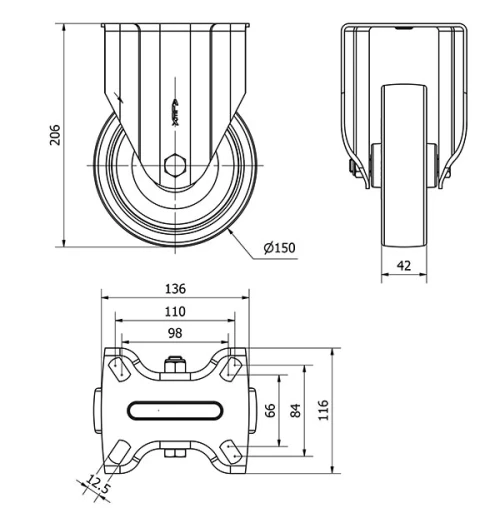

|Braking System||Without Brake|
|Hardness of tread||90-95º SHORE A|
|Width of tyre (mm)||42|
|Plate dimensions (mm)||136x116|
|Distance between holes (mm)||105x80|
|Plate hole diameter (mm)||10|
|Overall height (mm)||188|
|Unit Weight of the wheel (kg)||1.583|
Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.
Rolling Resistence Very Good
Noise during the march Very Good
Floor Protection Very Good
