TV SERIES-TA 2-2897

Code: 2-2897

Steel castors, especially indicated to support high-loads up to 800 Kg.

It is used in: industrial sectors, automobile factories, food industry and agricultural farms.

Suitable for mechanical engineering projects by draftsmen and project executors.

TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

Wheel

Cast iron wheel

Temperature range: -40º ÷ +300º

Rolling Resistence Excelent

Noise during the march Sufficient

Floor Protection Sufficient

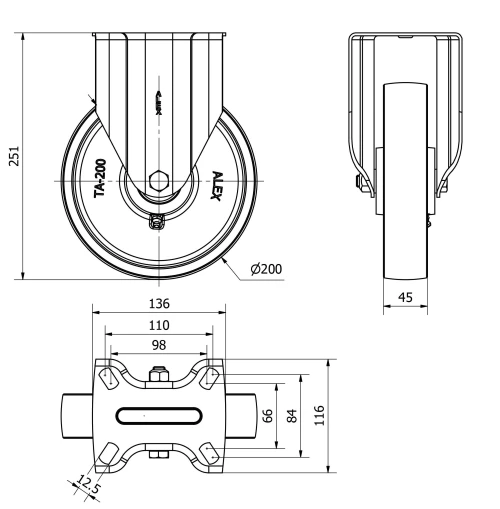

Technical Data 2-2897

EAN:

8422202228976

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Cast Iron

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

136x116

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

251

Load:

800

Unit Weight of the wheel (kg):

6,18

Volume (cm³):

5823
