TV SERIES-TA 2-1629

Code: 2-1629

Steel castors, especially indicated to support high-loads up to 800 Kg.

It is used in: industrial sectors, automobile factories, food industry and agricultural farms.

Suitable for mechanical engineering projects by draftsmen and project executors.

TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

Wheel

Cast iron wheel

Temperature range: -40º ÷ +300º

Rolling Resistence Excelent

Noise during the march Sufficient

Floor Protection Sufficient

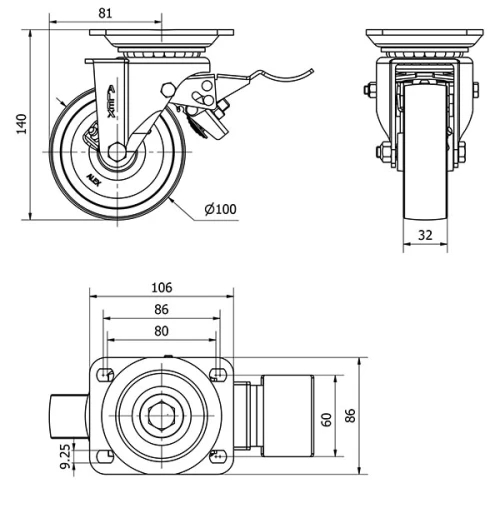

Technical Data 2-1629

EAN:

8422202216294

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Cast Iron

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

106x86

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

140

Load:

400

Unit Weight of the wheel (kg):

2,156

Volume (cm³):

2336
