TV SERIES-TD 2-1624

See comparative

Code: 2-1624

Reinforced resine castors, especially indicated to stand high temperatures up to 200º and high-loads up to 700 Kg.

It is used in: furnaces and light machinery.

Mainly used in the industrial sector, aeronautic sector, automobile factories and food industry.

Suitable for mechanical engineering projects by draftsmen and project executors.

TD: reinforced resine castor. Indicated for industrial industry.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

Wheel

Resin wheel up to 200ºC when not in continuous use

Temperature range: -40º ÷ +200º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

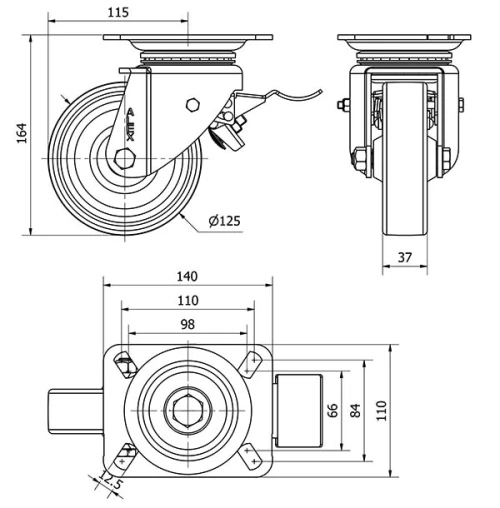

Technical Data 2-1624

EAN:

8422202216249

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Phenolic Resin Wheel

Bearing:

Plain

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

139x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

115

Overall height (mm):

164

Load:

550

Unit Weight of the wheel (kg):

2466

Volume (cm³):

4095
