TV SERIES-TN 2-1617
EAN 8422202216171
White nylon castors, especially indicated to suppor high-loads up to 600 Kg.
It is used in: internal logistics tools, tool trolleys, tubular carts, mobile platforms, transport tools, elevating platforms, food industry, repair shops, ladders, packaging machines, conveyor bels, containers, roll containers, transport cages and basketball hoops.
Mainly used in the industrial sector, aeronautic sector and automobile factories.
Suitable for mechanical engineering projects by draftsmen and project executors.
TN: robust and resistant. Undeformable, easy to move wiht high-loads. Does not leave marks on floor. Especially indicated for industial sectors.

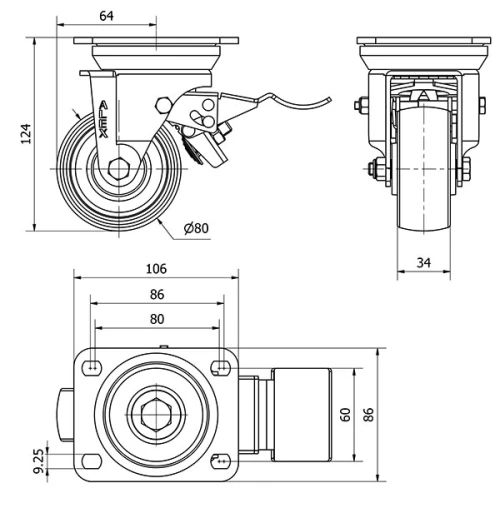

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Nylon(Polyamide 6) |
Bearing | Roller |
Diameter (mm) | 80 |
Width of tyre (mm) | 34 |
Plate dimensions (mm) | 106x86 |
Distance between holes (mm) | 86/80x60 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 64 |
Overall height (mm) | 124 |
Load | 250 |
Unit Weight of the wheel (kg) | 1.317 |
Volume (cm3) | 1888 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.
-
Rolling Resistence Excelent
-
Noise during the march Reasonable
-
Floor Protection Reasonable
