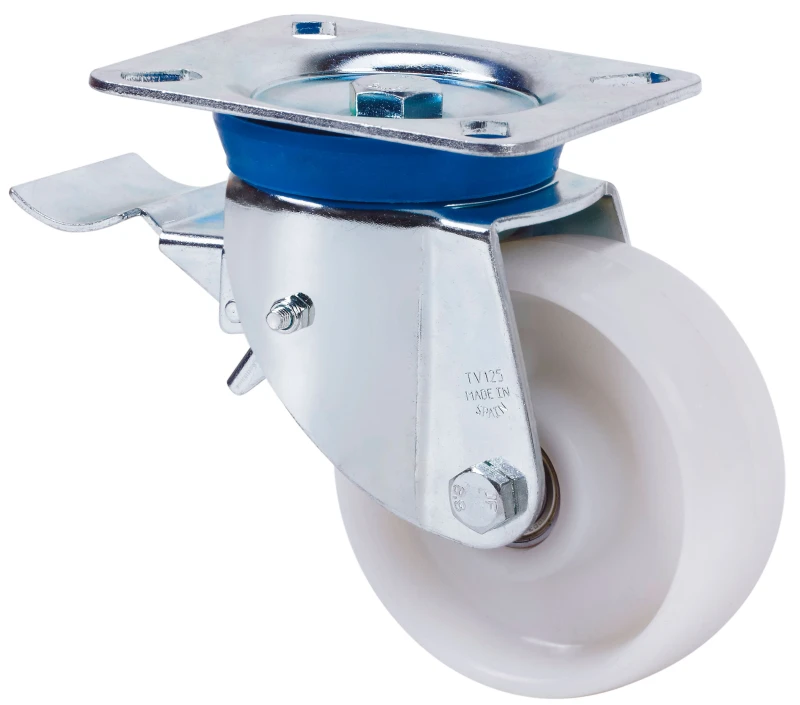

TV SERIES-TN 2-1621

Code: 2-1621

White nylon castors, especially indicated to suppor high-loads up to 600 Kg.

It is used in: internal logistics tools, tool trolleys, tubular carts, mobile platforms, transport tools, elevating platforms, food industry, repair shops, ladders, packaging machines, conveyor bels, containers, roll containers, transport cages and basketball hoops.

Mainly used in the industrial sector, aeronautic sector and automobile factories.

Suitable for mechanical engineering projects by draftsmen and project executors.

TN: robust and resistant. Undeformable, easy to move wiht high-loads. Does not leave marks on floor. Especially indicated for industial sectors.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

Wheel

White nylon ( Polyamide 6) wheel

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

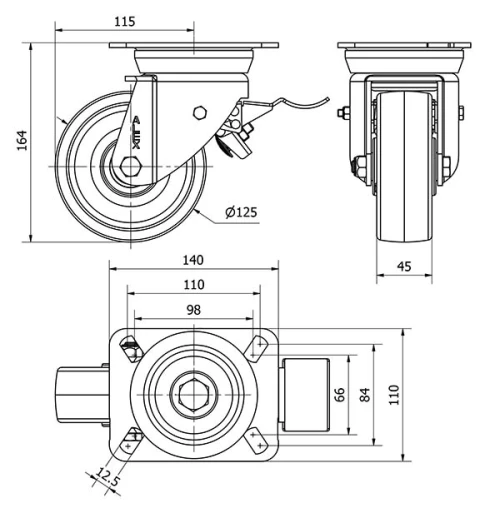

Technical Data 2-1621

EAN:

8422202216218

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Nylon(Polyamide 6)

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

139x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

115

Overall height (mm):

164

Load:

350

Unit Weight of the wheel (kg):

2,42

Volume (cm³):

4095
