TV SERIES-TPG 2-1607

Code: 2-1607

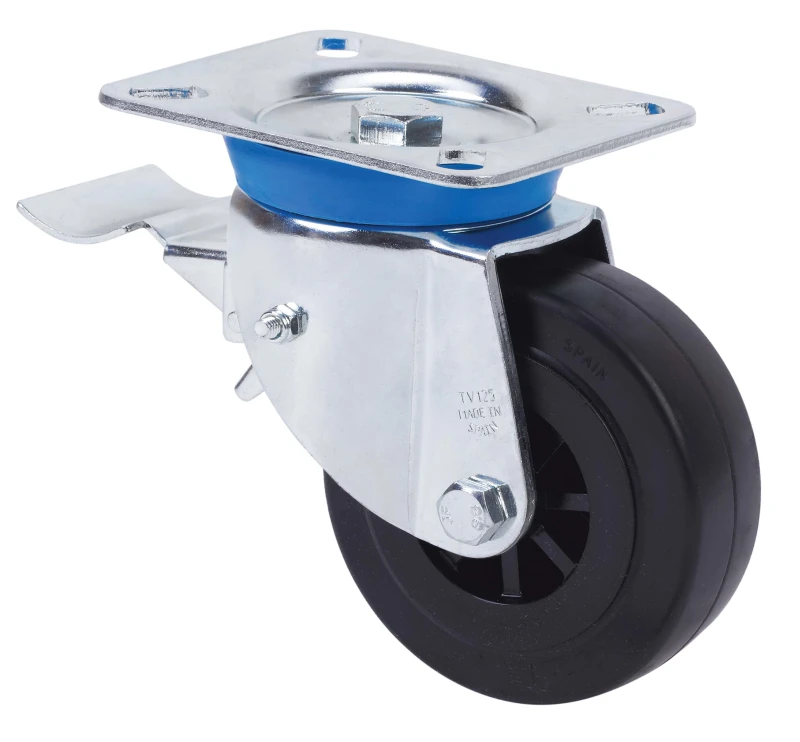

Castors with black nylon centre and rubber tyre. Especially indicated to support high-loads up to 280 Kg.

It is used in: food industry, conveyor belt, packaging machines and transport cages.

Suitable for mechanical engineering projects by draftsmen and project executors.

TPG: ideal in the manual and noiseless displacement of medium-loads. Absorption to impacts and vibrations. High protection of floors and equipment. Ideal in uneven surfaces.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

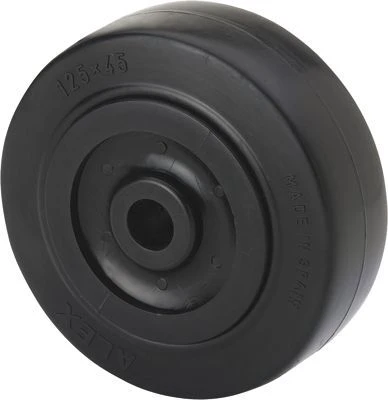

Wheel

Rubber tyre on black polyamide centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

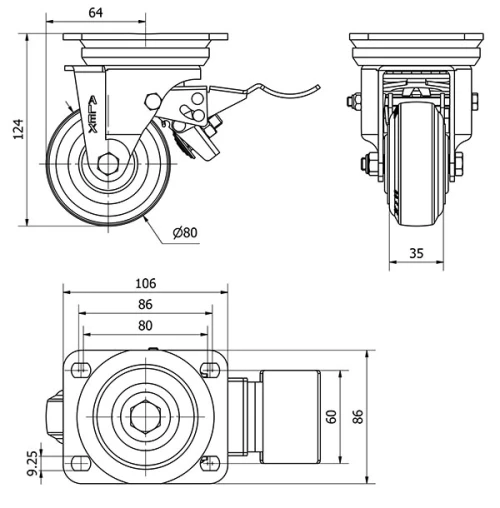

Technical Data 2-1607

EAN:

8422202216072

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Roller

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

106x86

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

124

Load:

110

Unit Weight of the wheel (kg):

1,426

Volume (cm³):

1888

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
