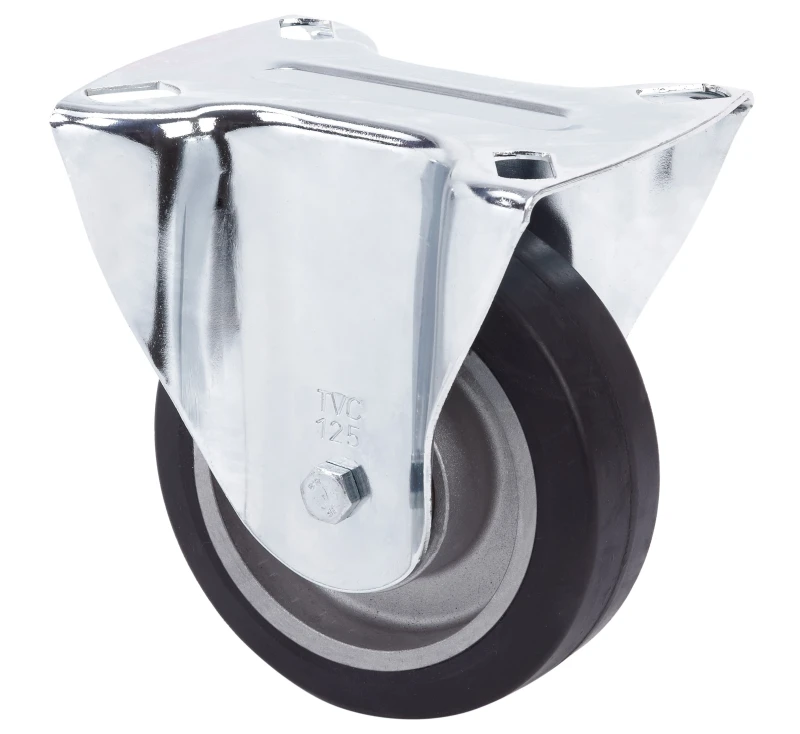

TVC SERIES-DE 2-3716

Code: 2-3716

Castors with aluminium centre and elastic black rubber tyre and a hardness of 70º Shore A, especially indicated to support high-loads up to 250 Kg.

It is used in: logistics transport tools, outdoor areas, internal logistics, mobile platforms, roll containers, elevating platforms and transport carts.

Mainly used in the industrial sector, aeronautic sector, railway and automobile factories.

DE: ideal for the manual displacement of medium-loads. Noiseless. Absorption to impacts and vibrations. High protection of floors and equipment. Ideal in uneven surfaces.

Components

Brackets

Made of highly resistant pressed steel. Finish: zinc-plated. Double ball bearing in the swivel head. Manufactured to European standard EN 12532.

Wheel

Elastic rubber tyre on Aluminium centre. 70º Shore A

Temperature range: -20º ÷ +70º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

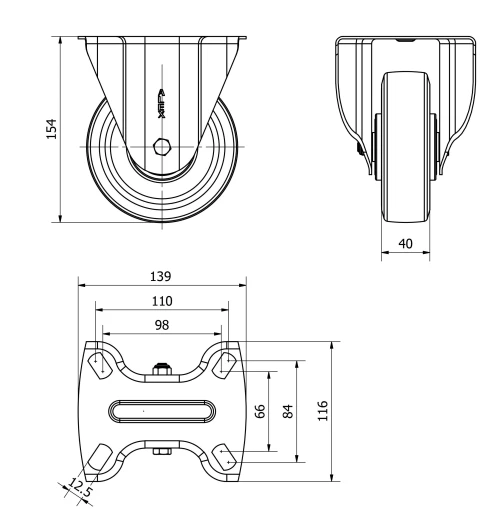

Technical Data 2-3716

EAN:

8422202237169

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Hardness of tread:

70º SHORE A

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

136x116

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

154

Load:

250

Unit Weight of the wheel (kg):

1,26

Volume (cm³):

2483
