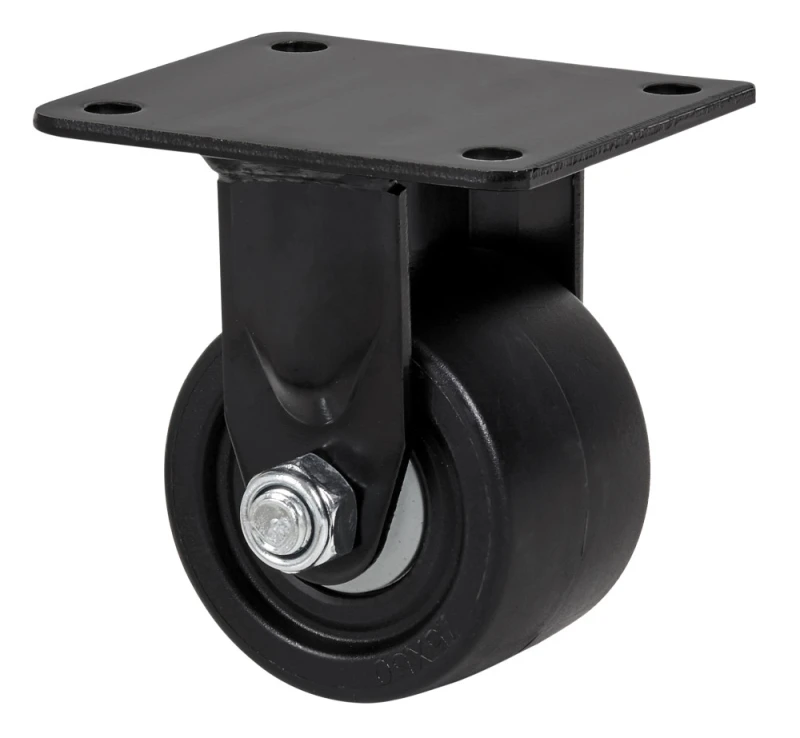

LP SERIES-KN 2-4546

Code: 2-4546

Reinforced nylon castors, especially designed to support loads up to 600 Kg with minimal height.

Used for medium-heavy duty loads in industrial environments, transport equipment, workshops, outdoor areas, tool trolleys, internal logistics, light machinery, forklifts, lifting tables.

KN: Smooth rolling performance and esay positioning. Noiseless.

Components

Brackets

Made of pressed steel up to 4mm thickness. Black paint finish. Double ball bearing swivel head (wrapped-around chromium steel ball bearing lying in a hardened seat) Manufactured according to European Standards EN12528/12532.

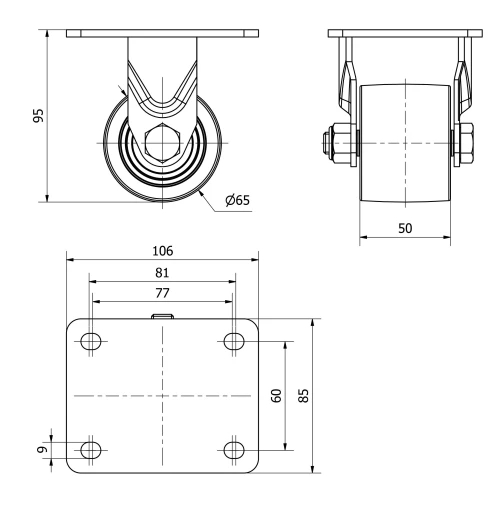

Technical Data 2-4546

EAN:

8422202245461

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Nylon(Polyamide 6)

Low Temperature (ºC):

-30

Maximum Temperature (ºC):

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

106x85

Distance between holes (mm):

81x60

Plate hole diameter (mm):

Overall height (mm):

Load:

500

Unit Weight of the wheel (kg):

0,8

Volume (cm³):

856
