Which castors do you need?
LP SERIES-VN 2-4540
EAN 8422202245409

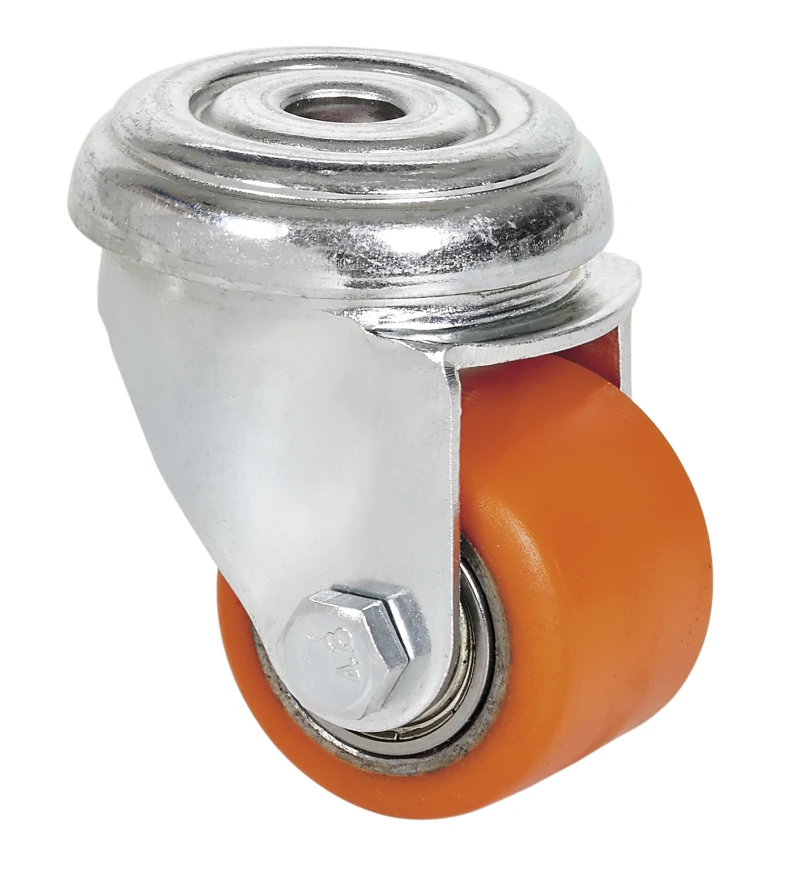

Castors with steel centre wheel and cast polyurethane tread (95º Shore A hardness). Especially designed to support loads up to 100 kg with minimal height.
Used for medium-heavy duty loads in industrial environments, transport equipment, workshops, outdoor areas, tool trolleys, internal logistics, light machinery, forklifts, lifting tables.
VN: Noiseless. Non-marking. High absorption to impacts and vibrations. Maximum floor protection.

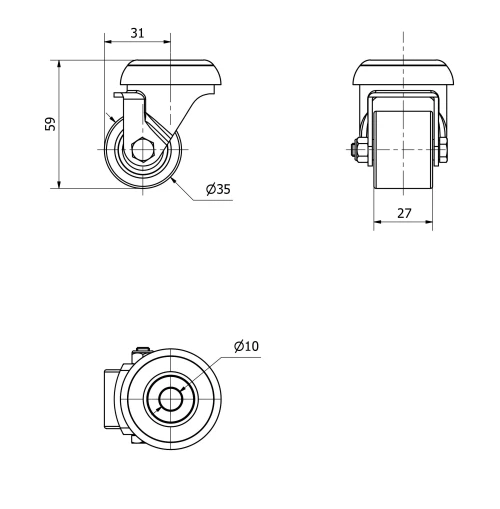

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Polyurethane |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 35 |
Width of tyre (mm) | 27 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 31 |
Overall height (mm) | 59 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.25 |
Volume (cm3) | 147 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 2mm thickness Zinc plated finish Double ball bearing swivel head (wrapped-around chromium steel ball bearing lying in a hardened seat) Manufactured according to European Standards EN12528/12532.
