LP SERIES-VN 2-4667

Code: 2-4667

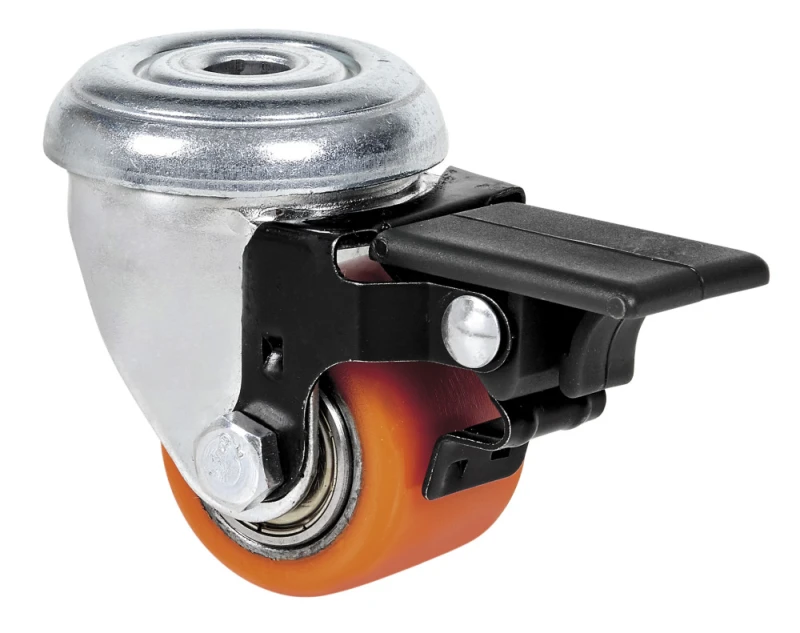

Castors with steel centre wheel and cast polyurethane tread (95º Shore A hardness). Especially designed to support loads up to 100 kg with minimal height.

Used for medium-heavy duty loads in industrial environments, transport equipment, workshops, outdoor areas, tool trolleys, internal logistics, light machinery, forklifts, lifting tables.

VN: Noiseless. Non-marking. High absorption to impacts and vibrations. Maximum floor protection.

Components

Brackets

Made of pressed steel up to 2mm thickness Zinc plated finish Double ball bearing swivel head (wrapped-around chromium steel ball bearing lying in a hardened seat) Manufactured according to European Standards EN12528/12532.

Technical Data 2-4667

EAN:

8422202246673

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake

Material:

Polyurethane

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

100

Unit Weight of the wheel (kg):

0,242
