Code: 4-1640

Castors suitable for mechanic traction.

High floor protection.

Smooth and noiseless tread

(Elevating driven carts, trailers...).

Industry in general.

Technical Data 4-1640

EAN:
8422202416403
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
80-85º SHORE A
Bearing:
Ball
Color:
Black
Diameter (mm):
300
Width of tyre (mm):
75
Axle Hole:
25
Lenght Of Hub:
82
Load:
850
Unit Weight of the wheel (kg):
11,6
Volume (cm3):
6750

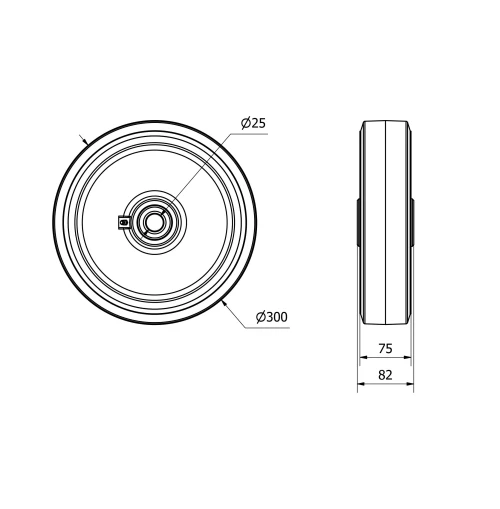

Technical Data 4-1640

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
