Code: 4-1642

Castors suitable for mechanic traction.

High floor protection.

Smooth and noiseless tread

(Elevating driven carts, trailers...).

Industry in general.

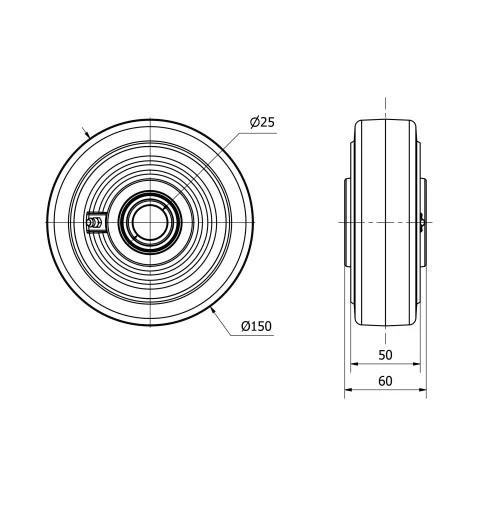

Technical Data 4-1642

EAN:
8422202416427
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
80-85º SHORE A
Bearing:
Ball
Color:
Black
Diameter (mm):
150
Width of tyre (mm):
50
Axle Hole:
25
Lenght Of Hub:
60
Load:
400
Unit Weight of the wheel (kg):
3,12
Volume (cm3):
1350
Technical Data 4-1642
