Wheel HG 4-1643

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 4-1643

Castors suitable for mechanic traction.

High floor protection.

Smooth and noiseless tread

(Elevating driven carts, trailers...).

Industry in general.

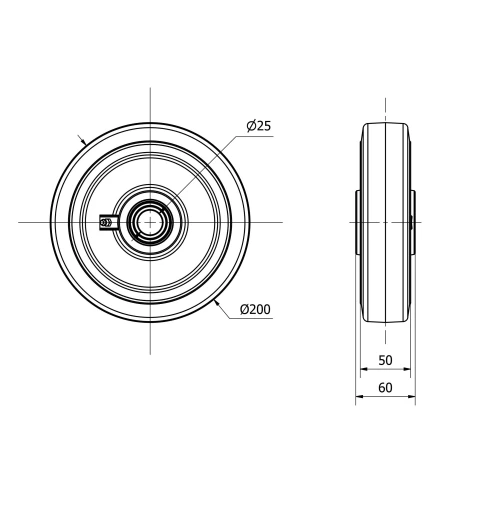

Technical Data 4-1643

EAN:
8422202416434
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
80-85º SHORE A
Bearing:
Ball
Color:
Black
Diameter (mm):
200
Width of tyre (mm):
50
Axle Hole:
25
Lenght Of Hub:
60
Load:
600
Unit Weight of the wheel (kg):
4,2
Volume (cm3):
240
