Code: 2-0412

Smooth and noiseless castors.

High floor protection.

Absorption to impacts and vibrations.

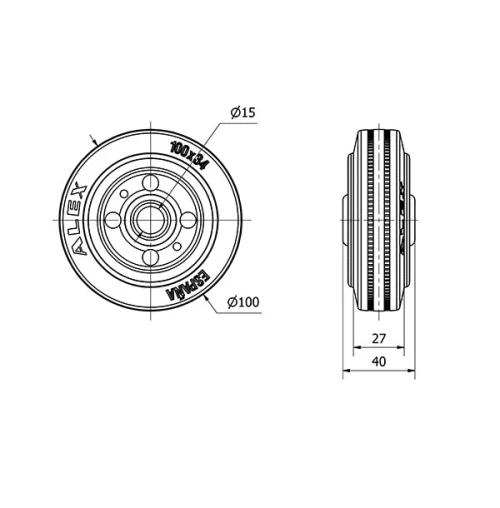

Technical Data 2-0412

EAN:
8422202204123
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
80-85º SHORE A
Bearing:
Roller
Color:
Black
Diameter (mm):
100
Width of tyre (mm):
27
Axle Hole:
15
Lenght Of Hub:
40
Load:
110
Unit Weight of the wheel (kg):
0,358
Volume (cm3):
400
Threadguards:
2-0816
Technical Data 2-0412

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
