Code: 4-0745

Smooth and noiseless castors.

High floor protection.

Absorption to impacts and vibrations.

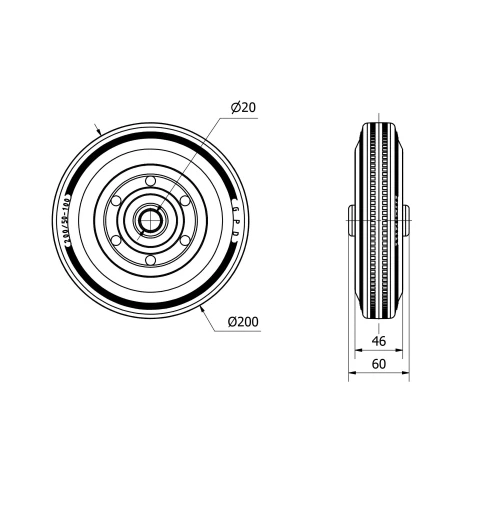

Technical Data 4-0745

EAN:
8422202407456
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
80-85º SHORE A
Bearing:
Roller
Color:
Black
Diameter (mm):
200
Width of tyre (mm):
46
Axle Hole:
20
Lenght Of Hub:
60
Load:
230
Unit Weight of the wheel (kg):
1,925
Volume (cm3):
2400
Threadguards:
2-0818
Technical Data 4-0745
