Wheel PI 4-1290
EAN 8422202412900
Black rubber wheels.
Centre: polyamide.
Tyre: black rubber.
Bearing: plain
Temperature range: -20º C to +60º C.

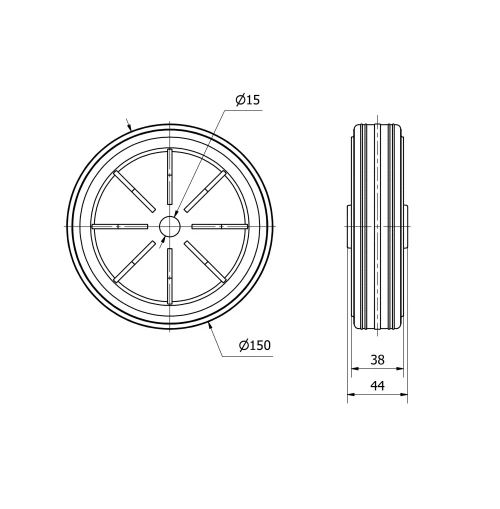

Technical Data
Housing Type | Loose ring |
---|---|
Material | Rubber |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Bearing | Plain |
Color | Black |
Diameter (mm) | 150 |
Width of tyre (mm) | 38 |
Axle Hole | 15 |
Lenght Of Hub | 44 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.32 |
Volume (cm3) | 990 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
