Code: 2-0785

Ideal in the manual and noiseless displacement of medium-loads.

Absorption to impacts and vibrations.

High protection of floors and equipment.

Ideal in uneven surfaces.

Technical Data 2-0785

EAN:
8422202207858
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Bearing:
Ball
Color:
Black
Diameter (mm):
125
Width of tyre (mm):
44
Axle Hole:
17
Lenght Of Hub:
53
Load:
200
Unit Weight of the wheel (kg):
0,745
Volume (cm3):
828
Threadguards:
2-0819

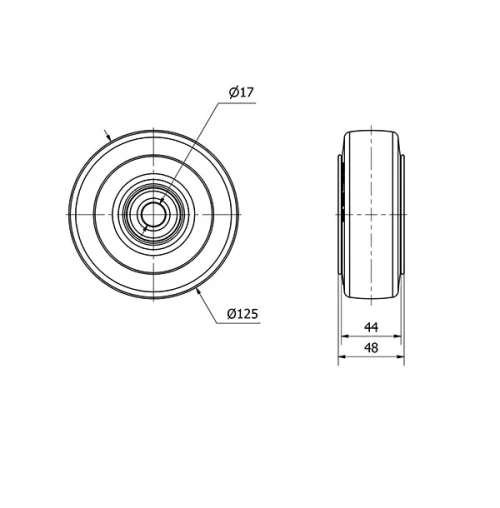

Technical Data 2-0785

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
