Code: 2-0062

Ideal in the manual and noiseless displacement of medium-loads.

Absorption to impacts and vibrations.

High protection of floors and equipment.

Ideal in uneven surfaces.

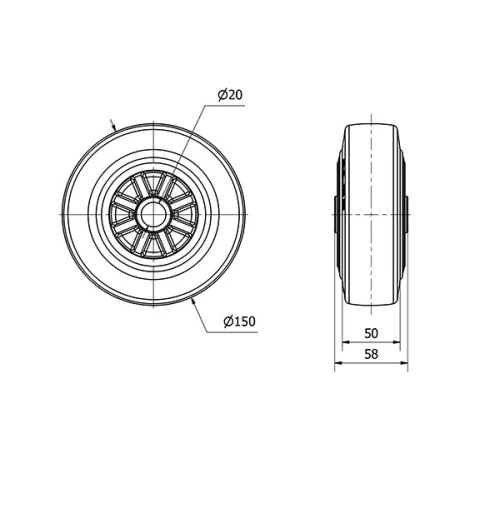

Technical Data 2-0062

EAN:
8422202200620
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Bearing:
Plain
Color:
Black
Diameter (mm):
150
Width of tyre (mm):
50
Axle Hole:
20
Lenght Of Hub:
58
Load:
280
Unit Weight of the wheel (kg):
0,985
Volume (cm3):
1350
Threadguards:
2-0817
Technical Data 2-0062
