Which castors do you need?

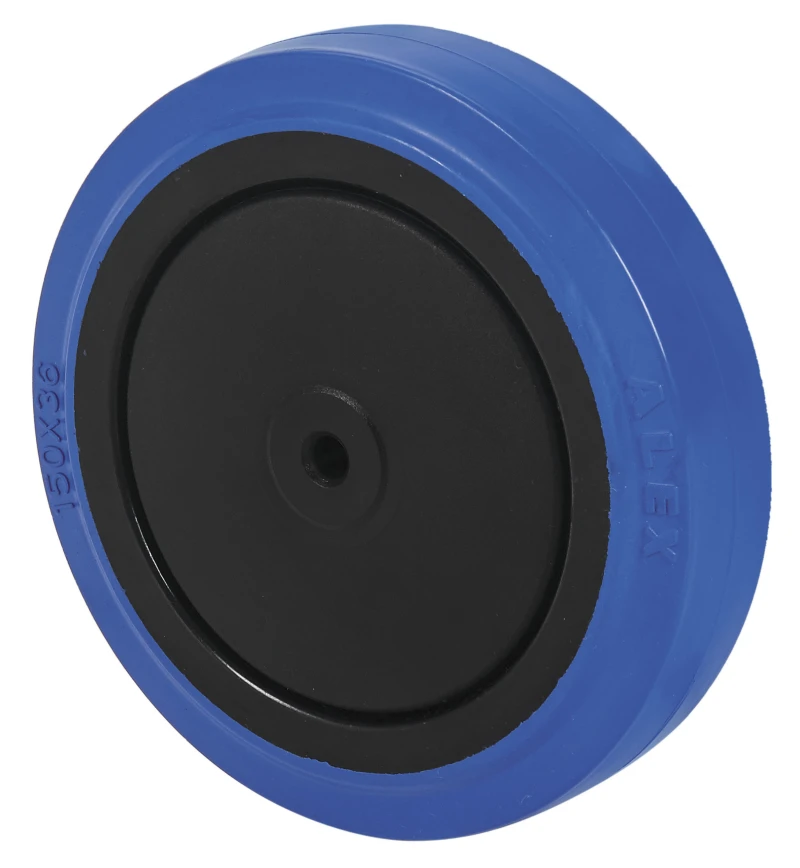

Wheel PGM 2-4427

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 2-4427

Does not leave marks on floor.

High absorption to impacts and vibrations.

Smooth and noiseless castors.

Elastic.

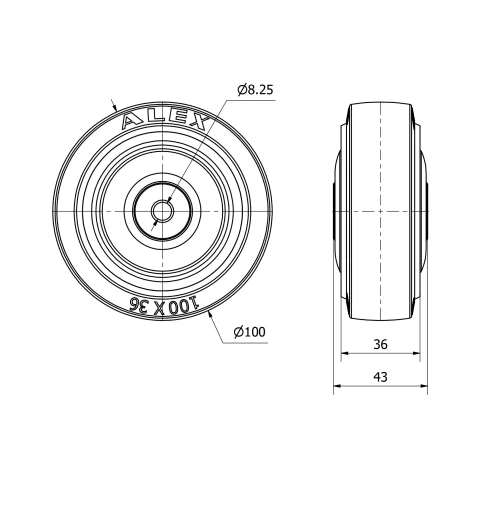

Technical Data 2-4427

EAN:
8422202244273
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
70
Hardness of tread:
65º-70º SHORE A
Bearing:
Ball
Color:
Blue
Diameter (mm):
100
Width of tyre (mm):
36
Axle Hole:
8
Lenght Of Hub:
43
Load:
170
Unit Weight of the wheel (kg):
0,3
Volume (cm3):
430
Threadguards:
Incluidos
Technical Data 2-4427

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
