Which castors do you need?
Wheel TA 4-0556
EAN 8422202405568
Tough work conditions where the existence of cutting objects, chemical products or high temperatures could destroy other kind of castors.
Heavy duty.
For temperatures above 200ºC, load (Kg) should be reduced by 40%.

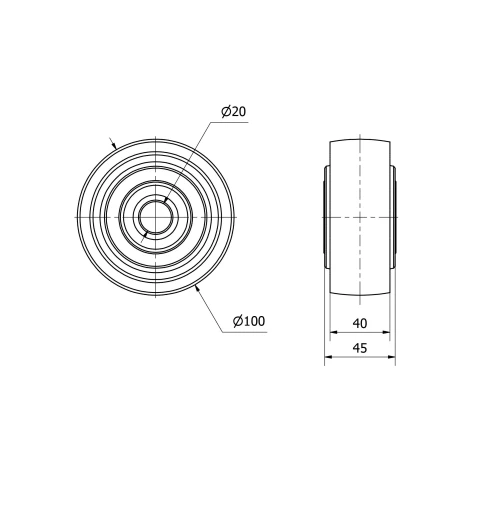

Technical Data
Housing Type | Loose ring |
---|---|
Material | Cast Iron |
Low Temperature (ºC) | -90 |
Maximum Temperature (ºC) | 600 |
Bearing | Ball |
Color | Black |
Diameter (mm) | 100 |
Width of tyre (mm) | 40 |
Axle Hole | 20 |
Lenght Of Hub | 45 |
Load | 450 |
Unit Weight of the wheel (kg) | 1.604 |
Volume (cm3) | 480 |
