Code: 4-1649

Tough work conditions where the existence of cutting objects, chemical products or high temperatures could destroy other kind of castors.

Heavy duty.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

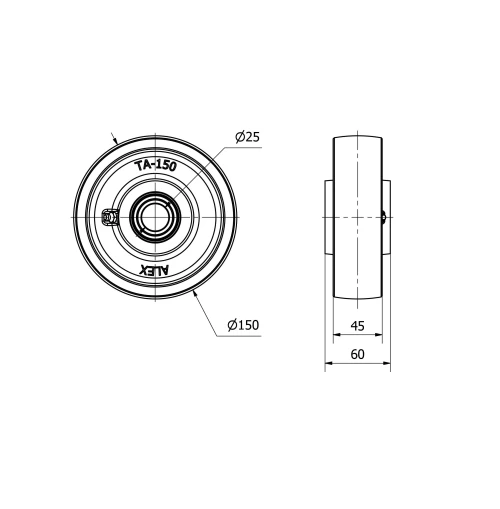

Technical Data 4-1649

EAN:
8422202416496
Housing Type:
Loose ring
Material:
Cast Iron
Low Temperature (ºC):
-90
Maximum Temperature (ºC):
600
Bearing:
Ball
Color:
Black
Diameter (mm):
150
Width of tyre (mm):
45
Axle Hole:
25
Lenght Of Hub:
60
Load:
1175
Unit Weight of the wheel (kg):
3,385
Volume (cm3):
1350
Technical Data 4-1649

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
