Which castors do you need?

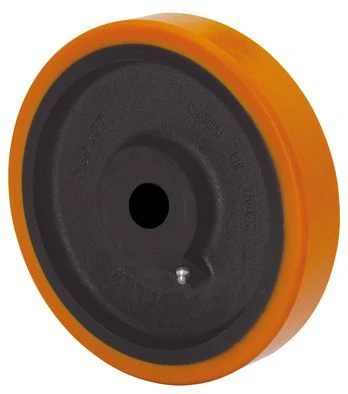

Wheel HU 4-1610

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 4-1610

High absorption to impacts.

Protection of floors and high resistance to the abrasion wear.

Noiseless.

Recommended for rough flooring surfaces, uneven, broken, with metallic shavings, oil stains, glasses, grease and gravel.

Technical Data 4-1610

EAN:
8422202416106
Housing Type:
Loose ring
Material:
Polyurethane
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
80
Hardness of tread:
95º SHORE A
Bearing:
Plain
Color:
Orange
Diameter (mm):
400
Width of tyre (mm):
120
Axle Hole:
60
Lenght Of Hub:
130
Load:
5000
Unit Weight of the wheel (kg):
43,5
Volume (cm3):
20800
Technical Data 4-1610
