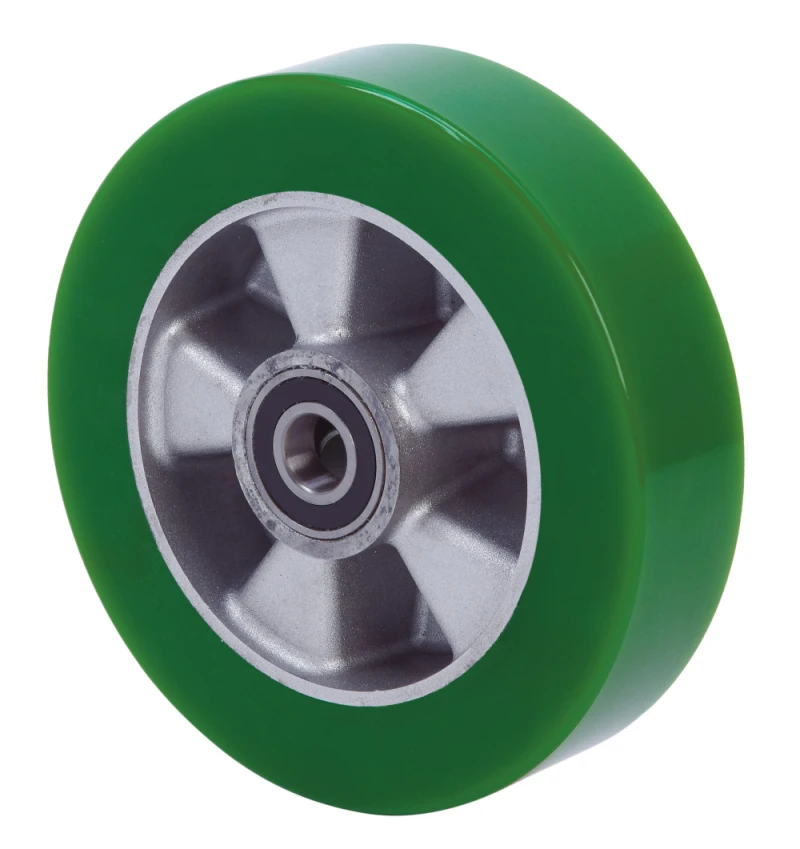

Code: 4-1641

Green polyurethane for heavy duty works.

Absorption to impacts.

Noiseless and gentle on floor.

Higher elasticity.

Technical Data 4-1641

EAN:
8422202416410
Housing Type:
Loose ring
Material:
Polyurethane
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
70
Hardness of tread:
80º SHORE A
Bearing:
Ball
Color:
Green
Diameter (mm):
200
Width of tyre (mm):
50
Axle Hole:
20
Lenght Of Hub:
60
Load:
700
Unit Weight of the wheel (kg):
1,72
Volume (cm3):
2400
