Wheel AUGB 4-1654
EAN 8422202416540
Green polyurethane for heavy duty works.
Absorption to impacts.
Noiseless and gentle on floor.
Higher elasticity.
Technical Data
Housing Type | Loose ring |
---|---|
Material | Polyurethane |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Hardness of tread | 80º SHORE A |
Bearing | Ball |
Color | Green |

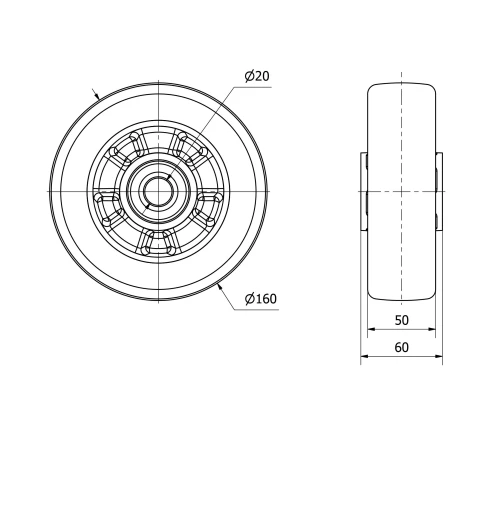

Diameter (mm) | 160 |
Width of tyre (mm) | 50 |
Axle Hole | 20 |
Lenght Of Hub | 60 |
Load | 550 |
Unit Weight of the wheel (kg) | 1.3 |
Volume (cm3) | 2400 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
