Code: 2-4059

Easy to use.

High absorption to impacts.

Unfavourable flooring surfaces conditions.

Rough surfaces, broken, with metallic shavings, oil stains, glasses, grease and gravel.

Low turning resistance and easier rolling.

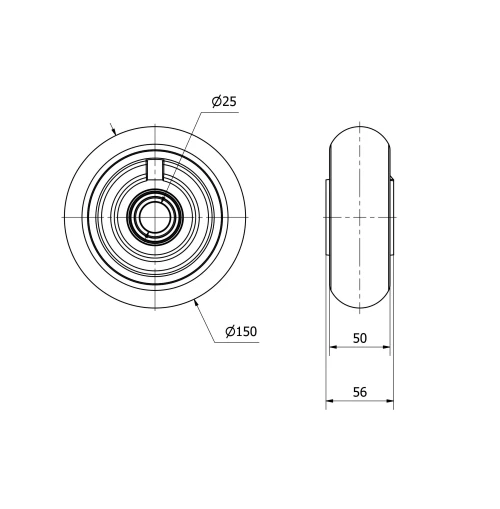

Technical Data 2-4059

EAN:
8422202240596
Housing Type:
Loose ring
Material:
Polyurethane
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
95º SHORE A
Bearing:
Ball
Color:
Orange
Diameter (mm):
150
Width of tyre (mm):
50
Axle Hole:
25
Lenght Of Hub:
56
Load:
600
Technical Data 2-4059

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
