Code: 4-1662

Heavy duty green polyurethane wheel.

Shocks absorption. 80º shore A hardness.

Good floor protection. Noiseless.

Round (crown) shaped tread. Less turning resistance and easier rolling.

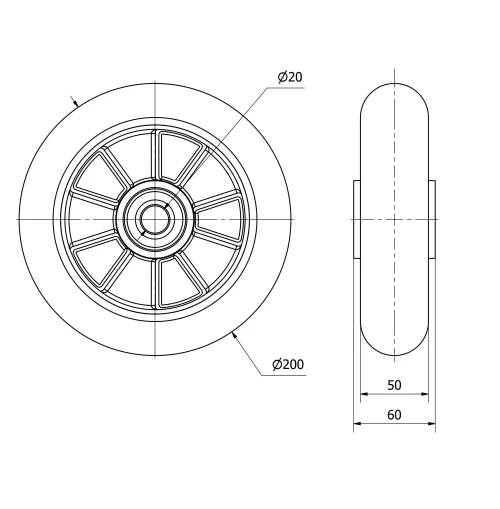

Technical Data 4-1662

EAN:
8422202416625
Housing Type:
Loose ring
Material:
Polyurethane
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
70
Hardness of tread:
80º SHORE A
Bearing:
Ball
Color:
Green
Diameter (mm):
200
Width of tyre (mm):
50
Axle Hole:
20
Lenght Of Hub:
60
Load:
650
Unit Weight of the wheel (kg):
1720
Volume (cm3):
2400
