Which castors do you need?
Wheel DE 4-0995
EAN 8422202409955
Ideal in the manual and noiseless displacement of medium-loads.
Absorption to impacts and vibrations.
High protection for floors and equipment.
Ideal for uneven surfaces.

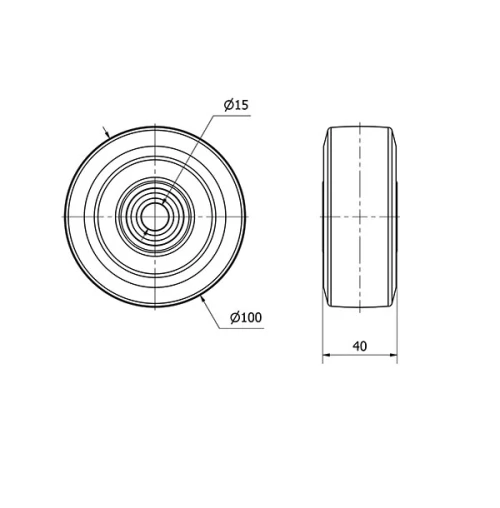

Technical Data
Housing Type | Loose ring |
---|---|
Material | Rubber |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 70 |
Hardness of tread | 70º SHORE A |
Bearing | Ball |
Color | Black |
Diameter (mm) | 100 |
Width of tyre (mm) | 40 |
Axle Hole | 15 |
Lenght Of Hub | 40 |
Load | 200 |
Unit Weight of the wheel (kg) | 0.405 |
Volume (cm3) | 400 |
