Code: 4-0996

Ideal in the manual and noiseless displacement of medium-loads.

Absorption to impacts and vibrations.

High protection for floors and equipment.

Ideal for uneven surfaces.

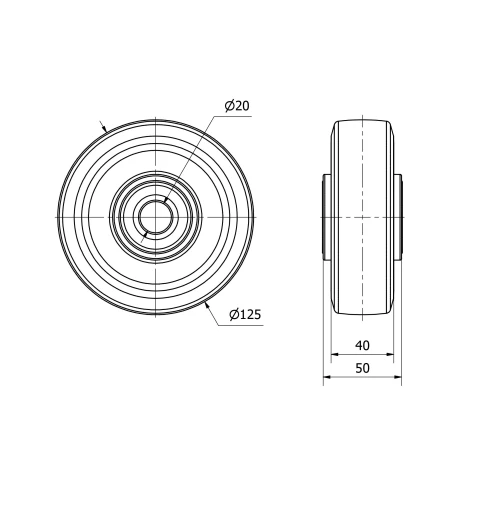

Technical Data 4-0996

EAN:
8422202409962
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
70
Hardness of tread:
70º SHORE A
Bearing:
Ball
Color:
Black
Diameter (mm):
125
Width of tyre (mm):
40
Axle Hole:
20
Lenght Of Hub:
50
Load:
250
Unit Weight of the wheel (kg):
0,74
Volume (cm3):
781
Technical Data 4-0996
