Code: 4-0998

Ideal in the manual and noiseless displacement of medium-loads.

Absorption to impacts and vibrations.

High protection for floors and equipment.

Ideal for uneven surfaces.

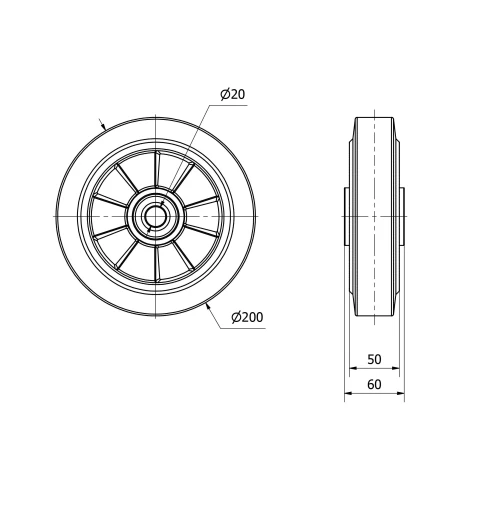

Technical Data 4-0998

EAN:
8422202409986
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
70
Hardness of tread:
70º SHORE A
Bearing:
Ball
Color:
Black
Diameter (mm):
200
Width of tyre (mm):
50
Axle Hole:
20
Lenght Of Hub:
60
Load:
450
Unit Weight of the wheel (kg):
1,55
Volume (cm3):
2400
Technical Data 4-0998
