Code: 2-3748

Does not leave marks on floor.

High absorption to impacts and vibrations.

Smooth and noiseless castors.

Elastic

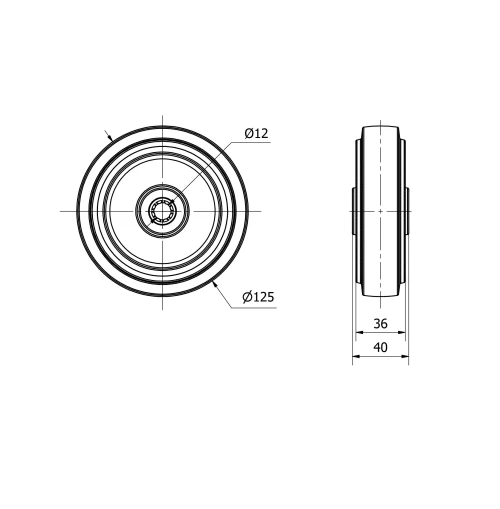

Technical Data 2-3748

EAN:
8422202237480
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
70
Hardness of tread:
65º-70º SHORE A
Bearing:
Roller
Color:
Gray
Diameter (mm):
125
Width of tyre (mm):
34
Axle Hole:
12
Lenght Of Hub:
40
Load:
225
Unit Weight of the wheel (kg):
0,35
Volume (cm3):
625
Technical Data 2-3748
