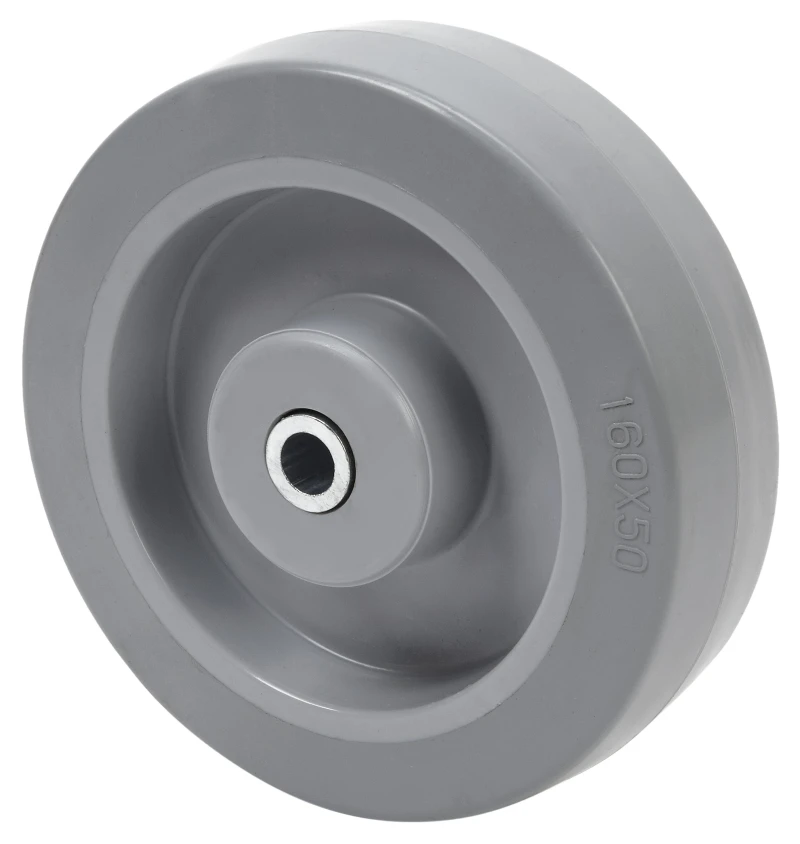

Wheel PGR 2-3749

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 2-3749

Does not leave marks on floor.

High absorption to impacts and vibrations.

Smooth and noiseless castors.

Elastic

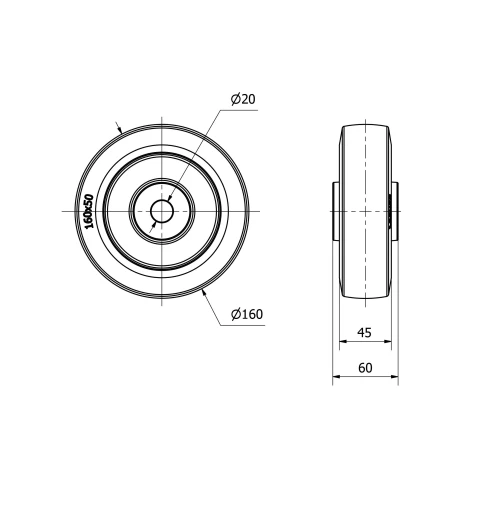

Technical Data 2-3749

EAN:
8422202237497
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
70
Hardness of tread:
65º-70º SHORE A
Bearing:
Roller
Color:
Gray
Diameter (mm):
160
Width of tyre (mm):
45
Axle Hole:
20
Lenght Of Hub:
60
Load:
350
Unit Weight of the wheel (kg):
0,89
Volume (cm3):
1536
Technical Data 2-3749
