Code: 2-3750

Does not leave marks on floor.

High absorption to impacts and vibrations.

Smooth and noiseless castors.

Elastic

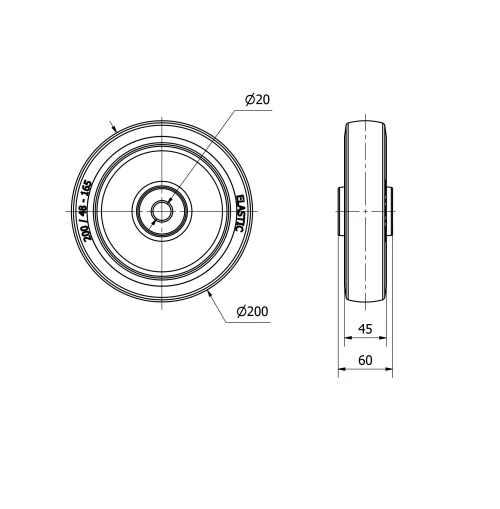

Technical Data 2-3750

EAN:
8422202237503
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
70
Hardness of tread:
65º-70º SHORE A
Bearing:
Roller
Color:
Gray
Diameter (mm):
200
Width of tyre (mm):
45
Axle Hole:
20
Lenght Of Hub:
60
Load:
400
Unit Weight of the wheel (kg):
1,115
Volume (cm3):
2400
Technical Data 2-3750
